Overview - Door Components

The overview shows the left side of the vehicle as an example.

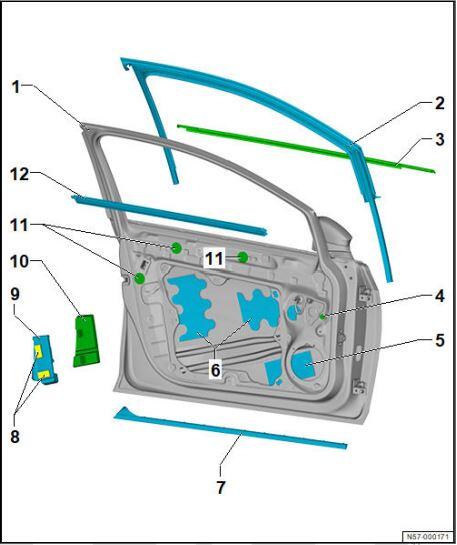

Fig 1: Exploded View Of Door Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Door
   • Refer to Door, Removing and Installing  .
   • Refer to Door, Adjusting  .
2. Window Guide
   • Refer to Window Guide, Removing and Installing  .
3. Outer Window Shaft Strip
   • Refer to Outer Window Shaft Strip, Removing and Installing  .
4. Sticker
   • Diameter 19 mm
5. Noise Insulation for Inside of Outer Door Panel
   • Self-adhesive
   • Dimensions. Refer to the Electronic Parts Information (ETKA).
   • Refer to NOISE INSULATION FOR INSIDE OF OUTER DOOR PANEL, REMOVING AND INSTALLING
6. Noise Insulation for Inside of Outer Door Panel
   • Self-adhesive
   • Dimensions. Refer to the Electronic Parts Information (ETKA).
   • Refer to NOISE INSULATION FOR INSIDE OF OUTER DOOR PANEL, REMOVING AND INSTALLING
7. Outer Door Seal
   • Refer to Outer Door Seal, Removing and Installing  .
8. Adhesive Tape
   • Only to be replaced together with the cushion for the front door
   • Depending on the equipment/version present
   • Quantity: 2
   • Refer to Front Door Cushion, Removing and Installing  .
9. Cushion for Front Door
   • Inner
   • Depending on the equipment/version present
   • Always replace after removing
   • Refer to Front Door Cushion, Removing and Installing  .
10. Cushion for Front Door
    • Outside
    • Depending on the equipment/version present
    • Refer to Front Door Cushion, Removing and Installing  .
11. Plug
    • Quantity: 3
12. Inner Window Shaft Strip
    • Refer to Inner Window Shaft Strip, Removing and Installing  .
