Component Location Overview - Central Locking

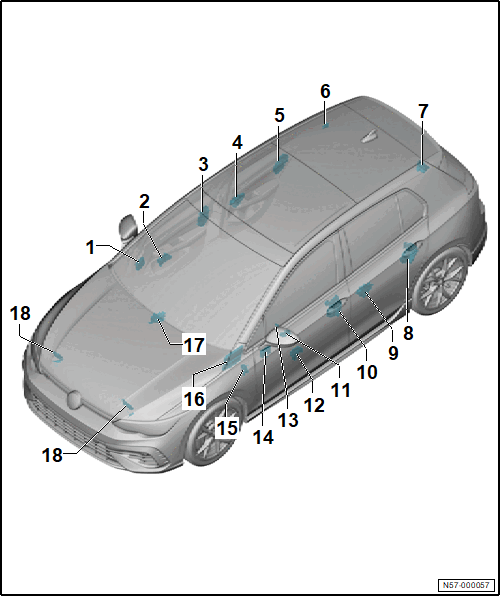

Fig 1: Identifying Central Locking Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Passenger Door Control Module -J387-
- Refer to DRIVER DOOR CONTROL MODULE J386 AND FRONT PASSENGER DOOR CONTROL MODULE J387, REMOVING AND INSTALLING .
Front Passenger Window Regulator Motor -V148-
- Refer to OVERVIEW - WINDOW REGULATOR .
- Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Front Passenger Door Lock Unit -VX22-
- With Front Passenger Door Contact Switch -F3-
- With Front Passenger Central Locking Lock Unit -F221-
- With Front Passenger Door Central Locking -Safe- Function Actuator -F244-
- With Front Passenger Door Central Locking System Motor -V57-
- With Front Passenger Central Locking -Safe- Motor -V162-
- Refer to OVERVIEW - EXTERIOR DOOR HANDLE
- Refer to DOOR LOCK, REMOVING AND INSTALLING .
Passenger Side Rear Window Regulator Motor -V472-
- Refer to OVERVIEW - WINDOW REGULATOR .
- Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Passenger Side Rear Door Lock Unit -VX84-
- With Passenger Side Rear Door Contact Switch -F506-
- With Passenger Side Rear Central Locking Lock Unit -F436-
- With Passenger Side Rear Central Locking System Actuator -F510-
- With Passenger Side Rear Central Locking System Motor -V540-
- With Passenger Side Rear Door Central Locking -Safe- Motor -V538-
- Refer to OVERVIEW - DOOR HANDLE AND DOOR LOCK .
- Refer to LOCK UNIT, REMOVING AND INSTALLING .
Fuel Filler Door Lock Motor -V155-
- Depending on the equipment/version
- Refer to FUEL FILLER DOOR LOCK MOTOR, REMOVING AND INSTALLING .
Rear Lid Handle -EX37-
- Depending on the equipment/version
- With Rearview Camera -R189-
- Refer to Overview - Rear Lid .
- Refer to REAR LID HANDLE, REMOVING AND INSTALLING .
Driver Side Rear Door Lock Unit -VX83-
- With Driver Side Rear Door Contact Switch -F505-
- With Driver Side Rear Central Locking Lock Unit - F435-
- With Driver Side Rear Central Locking System Actuator -F509-
- With Driver Side Rear Central Locking System Motor -V539-
- With Driver Side Rear Door Central Locking -Safe- Motor -V537-
- Refer to OVERVIEW - DOOR HANDLE AND DOOR LOCK .
- Refer to LOCK UNIT, REMOVING AND INSTALLING .
Driver Side Rear Window Regulator Motor -V471-
- Refer to OVERVIEW - WINDOW REGULATOR .
- Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Driver Door Lock Unit -VX21-
- With Driver Door Contact Switch -F2-
- With Driver Central Locking Lock Unit -F220-
- With Driver Lock Cylinder Contact Switch -F241-
- With Driver Door Central Locking -Safe- Function Actuator -F243-
- With Driver Door Central Locking System Motor -V56-
- With Driver Door Central Locking -Safe- Motor -V161-
- Refer to OVERVIEW - EXTERIOR DOOR HANDLE
- Refer to DOOR LOCK, REMOVING AND INSTALLING .
Power Window Control Head in Driver Door -EX36-
- Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS (VEHICLES WITH MANUAL TRANSMISSION) , or COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS (VEHICLES WITH AUTOMATIC TRANSMISSION) .
Driver Window Regulator Motor -V147-
- Refer to OVERVIEW - WINDOW REGULATOR .
- Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Central Locking Button -E600-
- Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS (VEHICLES WITH MANUAL TRANSMISSION) , or COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS (VEHICLES WITH AUTOMATIC TRANSMISSION) .
Driver Door Control Module -J386-
- Refer to DRIVER DOOR CONTROL MODULE J386 AND FRONT PASSENGER DOOR CONTROL MODULE J387, REMOVING AND INSTALLING .
High-Voltage Charge Door Lock 1 Adjuster -F496-
- Depending on the equipment/version
- Refer to High-Voltage Charge Door Lock 1 Adjuster F496, Removing and Installing .
Vehicle Electrical System Control Module -J519-
- Refer to OVERVIEW - VEHICLE ELECTRICAL SYSTEM CONTROL MODULE .
- Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519, REMOVING AND INSTALLING .
Alarm Horn -H12-
- Refer to OVERVIEW - INTERIOR MONITORING .
- Refer to ALARM HORN H12, REMOVING AND INSTALLING .
Hood Latch
- With Engine Hood Contact Switch -F266-
- Refer to Overview - Hood .
- Refer to Hood Latch, Removing and Installing .
