Radar Field Of Vision Of The Bumper Cover In The Area Of The Lane Change Assistance Control Module And Radar Sensor For Object Detection

The overview shows the left side of the vehicle as an example.

Condition

• Pay attention to the information about paint repair in the radar field of vision. Refer to appropriate service information .

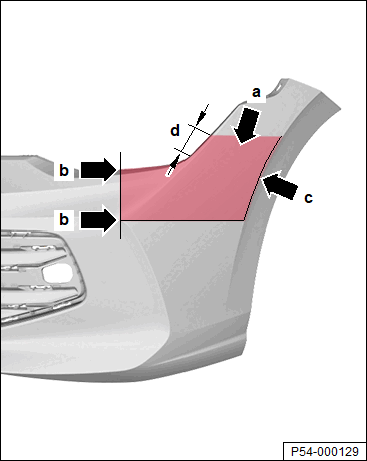

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a -

Radar field of vision

b -

Reference points

c -

Edge reference line

d -

Dimension = 50 mm

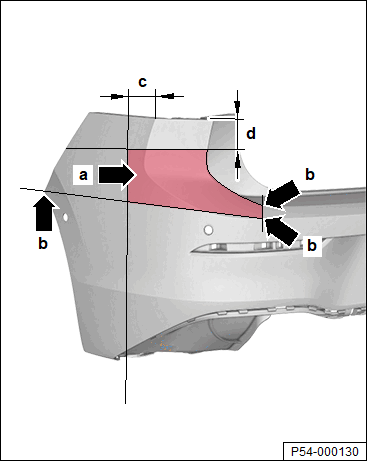

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a -

Radar field of vision

b -

Reference points

c -

Dimension = 80 mm

d -

Dimension = 70 mm
