Front Peripheral Camera R243, Removing And Installing: Removing

The Front Peripheral Camera -R243- will be called the camera in the information that follows.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

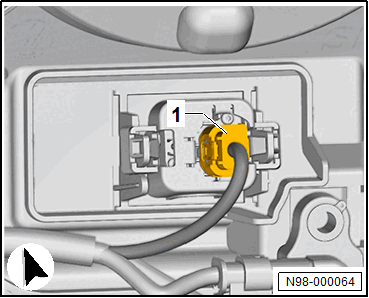

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

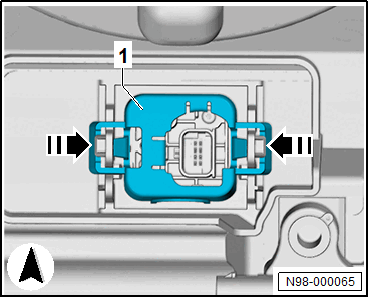

-- Press the hook in the -direction of the arrow- and remove the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

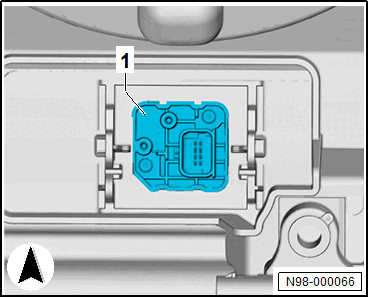

-- Remove the camera -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
