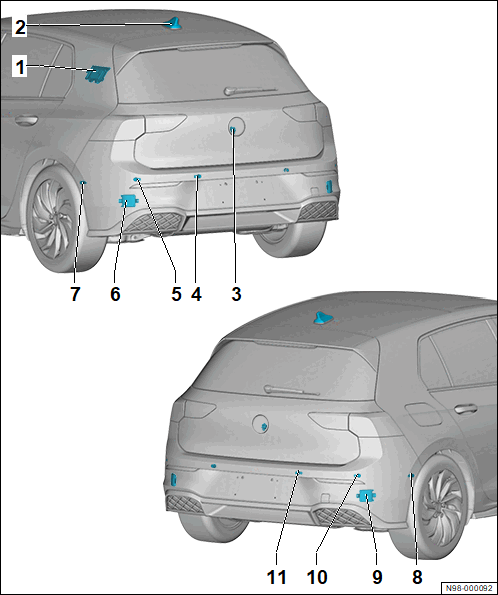

Component Location Overview - Sensors And Control Modules In Rear Section Of Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Peripheral Camera Control Module -J928-
- Refer to Front Peripheral Camera R243, Removing and Installing .
- Refer to PERIPHERAL CAMERA, CALIBRATING
Roof Antenna -RX5-
- Depending on equipment/version
- With Antenna for External Communication with Vehicle -R387-
- With GPS Antenna -R50-
- With GSM Antenna -R205-
- Refer to ROOF ANTENNA -RX5-, REMOVING AND INSTALLING .
Release Button In Rear Lid Handle -E234-
- Depending on equipment/version
- With Rearview Camera -R189-
- Rear Peripheral Camera -R246-
- With Rearview Camera System Control Module -J772-
- With Emblem Motor -V432-
- Refer to Rearview Camera R189, Removing and Installing .
- Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Refer to Rear Peripheral Camera R246, Removing and Installing .
- Refer to PERIPHERAL CAMERA, CALIBRATING
Left Rear Center Parking Aid Sensor -G204-
- Refer to Rear Parking Aid Sensors G203/G204/G205/G206, Removing and Installing .
Left Rear Parking Aid Sensor -G203-
- Refer to Rear Parking Aid Sensors G203/G204/G205/G206, Removing and Installing .
Lane Change Assistance Control Module 2 -J770-
- Refer to Lane Change Assistance Control Module J769/J770, Removing and Installing .
Left Rear Parallel Parking Assistance Sensor -G716-
- Refer to Left/Right Rear Parallel Parking Assistance Sensor G716/G717, Removing and Installing .
Right Rear Parallel Parking Assistance Sensor -G717-
- Refer to Left/Right Front Parallel Parking Assistance Sensor G568/G569, Removing and Installing
Lane Change Assistance Control Module -J769-
- Refer to Lane Change Assistance Control Module J769/J770, Removing and Installing .
Right Rear Parking Aid Sensor -G206-
- Refer to Rear Parking Aid Sensors G203/G204/G205/G206, Removing and Installing .
Right Rear Center Parking Aid Sensor -G205-
- Refer to Rear Parking Aid Sensors G203/G204/G205/G206, Removing and Installing .
