Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

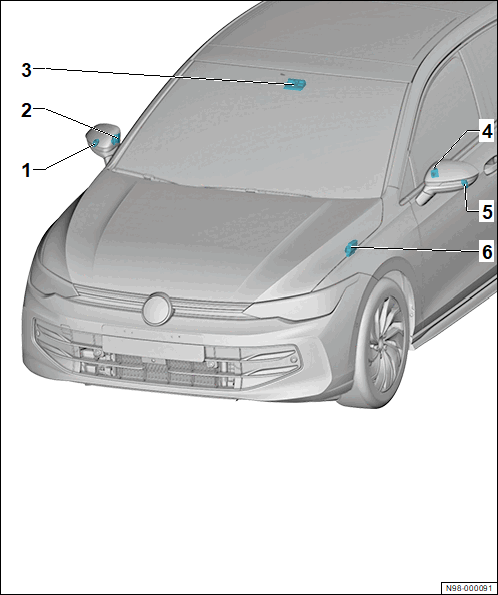

1. Right Peripheral Camera -R245-
   • Refer to Left/Right Peripheral Camera R244/R245, Removing and Installing  .
   • Refer to PERIPHERAL CAMERA, CALIBRATING
2. Lane Change Assistance Warning Lamp in Right Rearview Mirror -K311-
   • Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING  .
3. Driver Assistance Systems Front Camera -R242-
   • With Window Defogger for Front Sensor System -Z113-
   • Refer to Driver Assistance Systems Front Camera R242, Removing and Installing  .
   • Refer to Window Defogger for Front Sensor System Z113, Removing and Installing
   • Refer to Driver Assistance Systems Front Camera R242, Calibrating  .
4. Lane Change Assistance Warning Lamp in Left Rearview Mirror -K312-
   • Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING  .
5. Left Peripheral Camera -R244-
   • Refer to Left/Right Peripheral Camera R244/R245, Removing and Installing  .
   • Refer to PERIPHERAL CAMERA, CALIBRATING
6. Parking Aid Control Module -J446-
   • With Parking Aid Speaker -R169- via infotainment system
   • With Rear Parking Aid Speaker -R194- via infotainment system
   • Refer to Parking Aid Control Module J446, Removing and Installing  .
