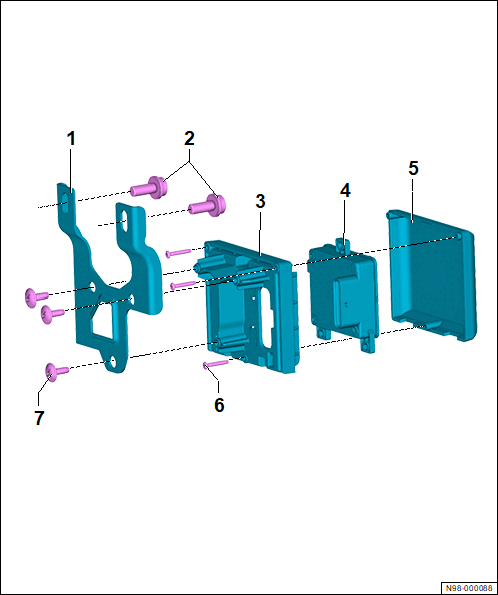

Overview - Adaptive Cruise Control (Acc)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Retaining plate for Distance Regulation Control Module -J428-.
Bolt
- Quantity: 2
- 8 Nm
Rear Cover
Control Module for Adaptive Cruise Control -J428-
- Refer to Control Module for Adaptive Cruise Control J428, Removing and Installing .
- Refer to Adaptive Cruise Control, Adjusting/Calibrating .
Front Cover
Bolt
- Quantity: 3
- 1 Nm
Bolt
- Quantity: 3
- 2.5 Nm
