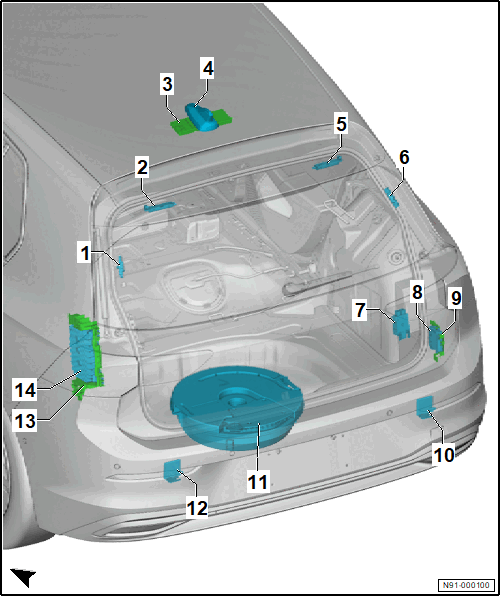

Component Location Overview - Components/Control Modules In Rear Section Of Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. FM Frequency Filter in Positive Wire -R179-
   • Refer to FM Frequency Filter in Negative Wire -R178- / FM Frequency Filter in Positive Wire -R179-, Removing and Installing  .
2. Antenna Module
   • Depending on equipment/version
   • With Antenna Amplifier -R24-
   • with Radio Antenna 2 -R93-
   • with TV Antenna 2 -R56-
   • Refer to Antenna Module, Removing and Installing
3. Internet Access Control Module -J666-
   • Refer to INTERNET ACCESS CONTROL MODULE J666, REMOVING AND INSTALLING  .
4. Roof Antenna -RX5-
   • Depending on equipment/version
   • With Antenna for External Communication with Vehicle -R387-
   • With GPS Antenna -R50-
   • With emergency call system LTE Antenna 1 -R297-
   • Refer to Roof Antenna -RX5-, Removing and Installing
5. Antenna Module
   • Depending on equipment/version
   • with Antenna -R11-
   • with TV Antenna 1 -R55-
   • Refer to Antenna Module, Removing and Installing
6. FM Frequency Filter in Negative Wire -R178-
   • Refer to FM Frequency Filter in Negative Wire -R178- / FM Frequency Filter in Positive Wire -R179-, Removing and Installing  .
7. AM Frequency Filter -R177-
   • Refer to AM Frequency Filter R177, Removing and Installing  .
8. Cellular Telephone Amplifier -R86-
   • Refer to Cellular Telephone Amplifier R86, Removing and Installing  .
9. Bracket
10. LTE Antenna 2 -R306-
    • Refer to LTE Antenna, Removing and Installing  .
11. Subwoofer -R211-
    • Refer to SUBWOOFER R211, REMOVING AND INSTALLING  .
12. Left Antenna Module -R108-
    • Depending on equipment/version
    • Refer to LTE Antenna, Removing and Installing  .
13. Bracket for Digital Sound System Control Module -J525-
    • Refer to Digital Sound System Control Module J525, Removing and Installing
14. Digital Sound System Control Module -J525-
    • Refer to Digital Sound System Control Module J525, Removing and Installing
