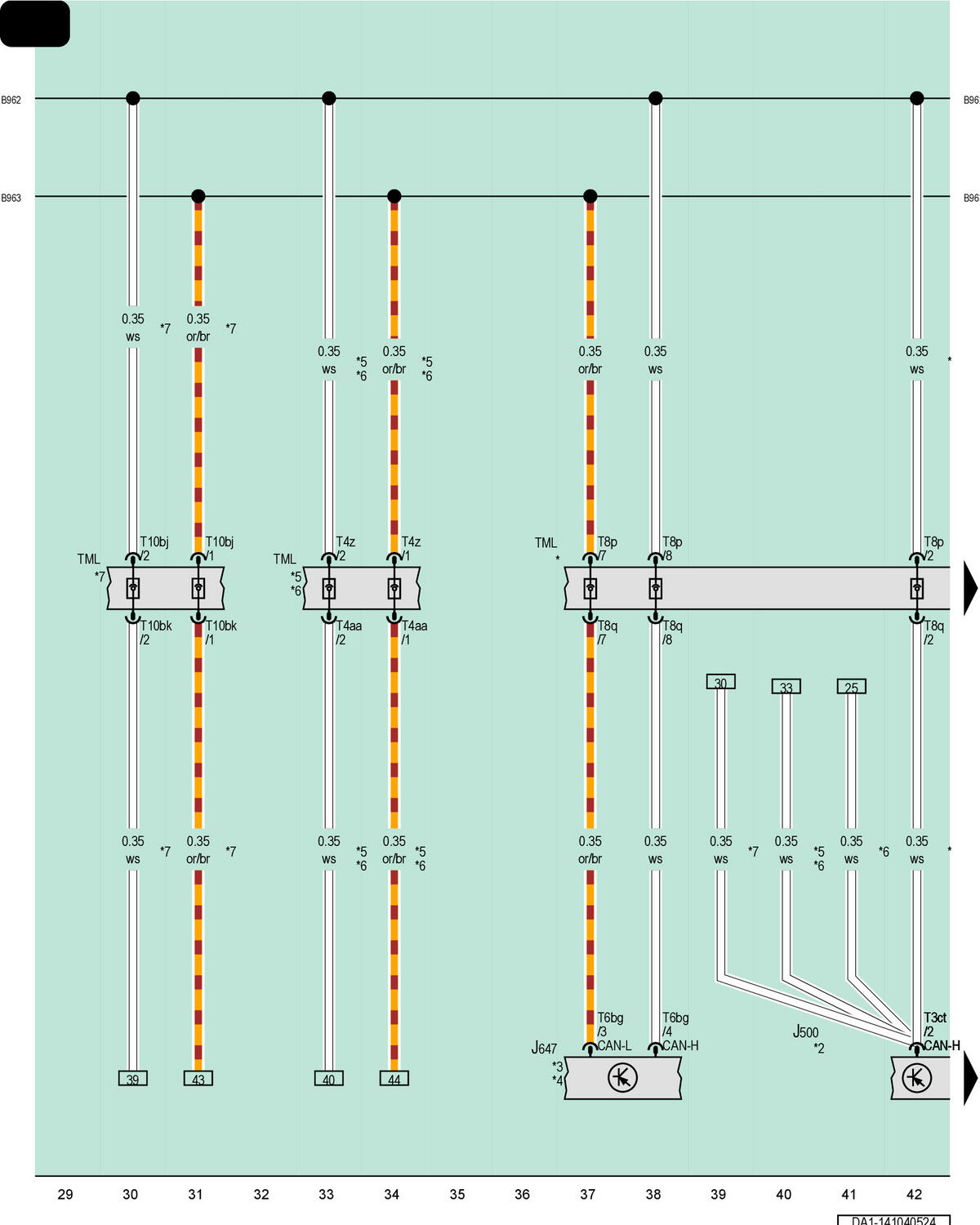

Power Steering Control Module, Differential Locks Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J500

Power Steering Control Module

J647

Differential Locks Control Module

T3ct

3-Pin Connector, Black

T4aa

4-Pin Connector, Black

T4z

4-Pin Connector, Black

T6bg

6-Pin Connector, Black

T8p

8-Pin Connector, Black

T8q

8-Pin Connector, Black

T10bj

10-Pin Connector, Black

T10bk

10-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

B962

Connection 2 (CAN Bus Suspension, High)

B963

Connection 2 (CAN Bus Suspension, Low)

*

For Vehicles with Diesel Engine

*2

Refer to the Applicable Steering Wiring Diagram

*3

For Vehicles with Front Differential Lock

*4

Refer to Applicable Wiring Diagram

*5

For Vehicles Without an Auxiliary Battery

*6

For Vehicles with Gasoline Engine

*7

For Vehicles with Hybrid Drive
