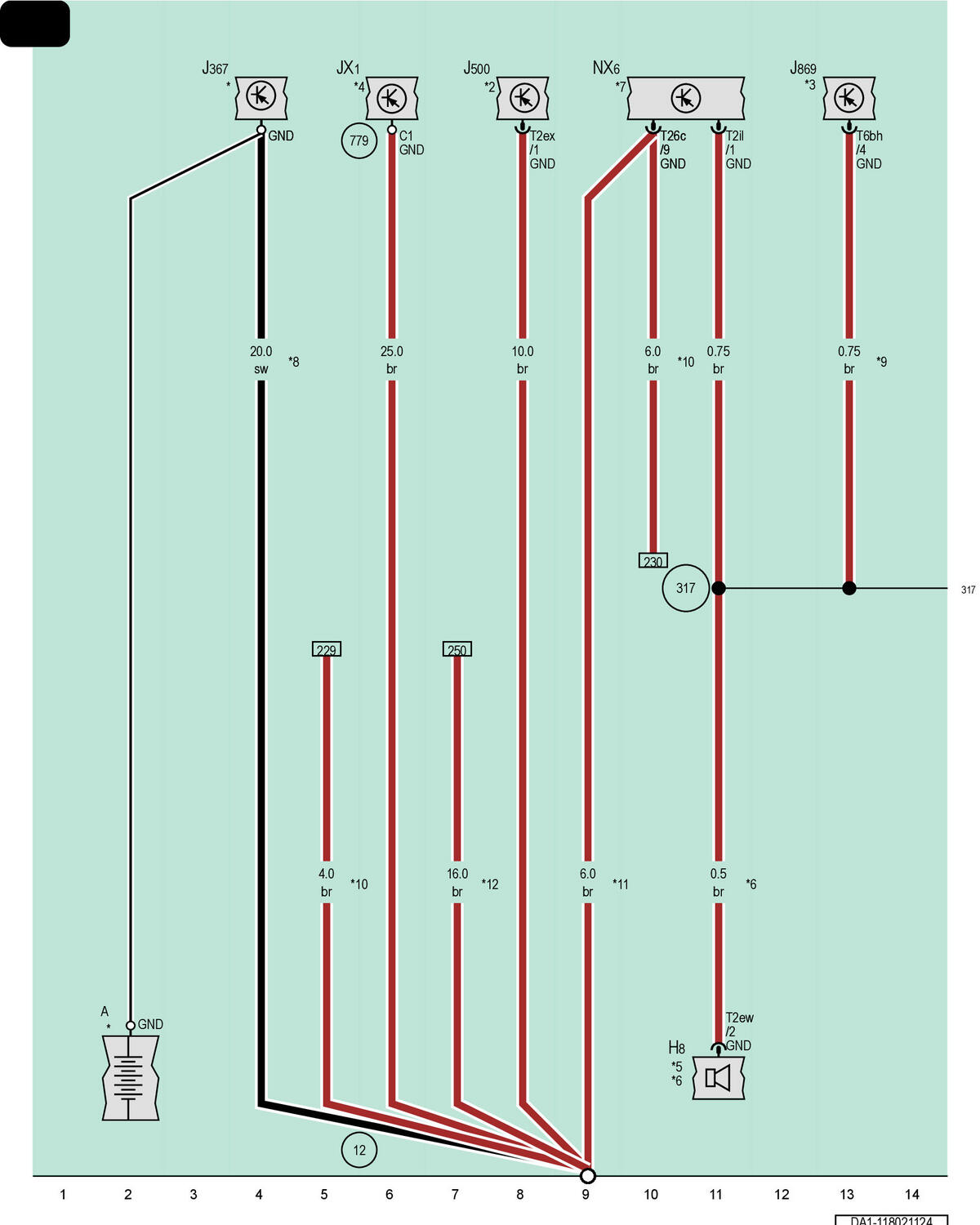

Battery, Anti-Theft Alarm System Horn, Electric Drive Power And Control Electronics, Battery Monitoring Control Module, Power Steering Control Module, Structure-Borne Sound Control Module, Brake Booster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A

Battery

H8

Anti-Theft Alarm System Horn

JX1

Electric Drive Power and Control Electronics

J367

Battery Monitoring Control Module

J500

Power Steering Control Module

J869

Structure-Borne Sound Control Module

NX6

Brake Booster

T2ew

2-Pin Connector, Black

T2ex

2-Pin Connector, Black

T2il

2-Pin Connector, Black

T6bh

6-Pin Connector, Black

T26c

26-Pin Connector, Black

12

Ground Connection in Engine/Motor Compartment, Left

317

Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)

779

Electric Drive Power and Control Electronics Ground Connection 1

*

Refer to Applicable Voltage Supply Wiring Diagram

*2

For Vehicles with Electromechanical Power Steering

*3

Refer to the Applicable Engine Sound Generator Wiring Diagram

*4

Refer to Applicable High-Voltage System Pilot Line Wiring Diagram

*5

Refer to the Applicable Anti-Theft Alarm System Wiring Diagram

*6

For USA Only

*7

Refer to Applicable Brake System Wiring Diagram

*8

For Vehicles with a Battery in the Engine/Motor Compartment

*9

For Vehicles with Engine/Motor Sound Generation

*10

For RHD Vehicles

*11

For LHD Vehicles

*12

For Vehicles with Hybrid Drive
