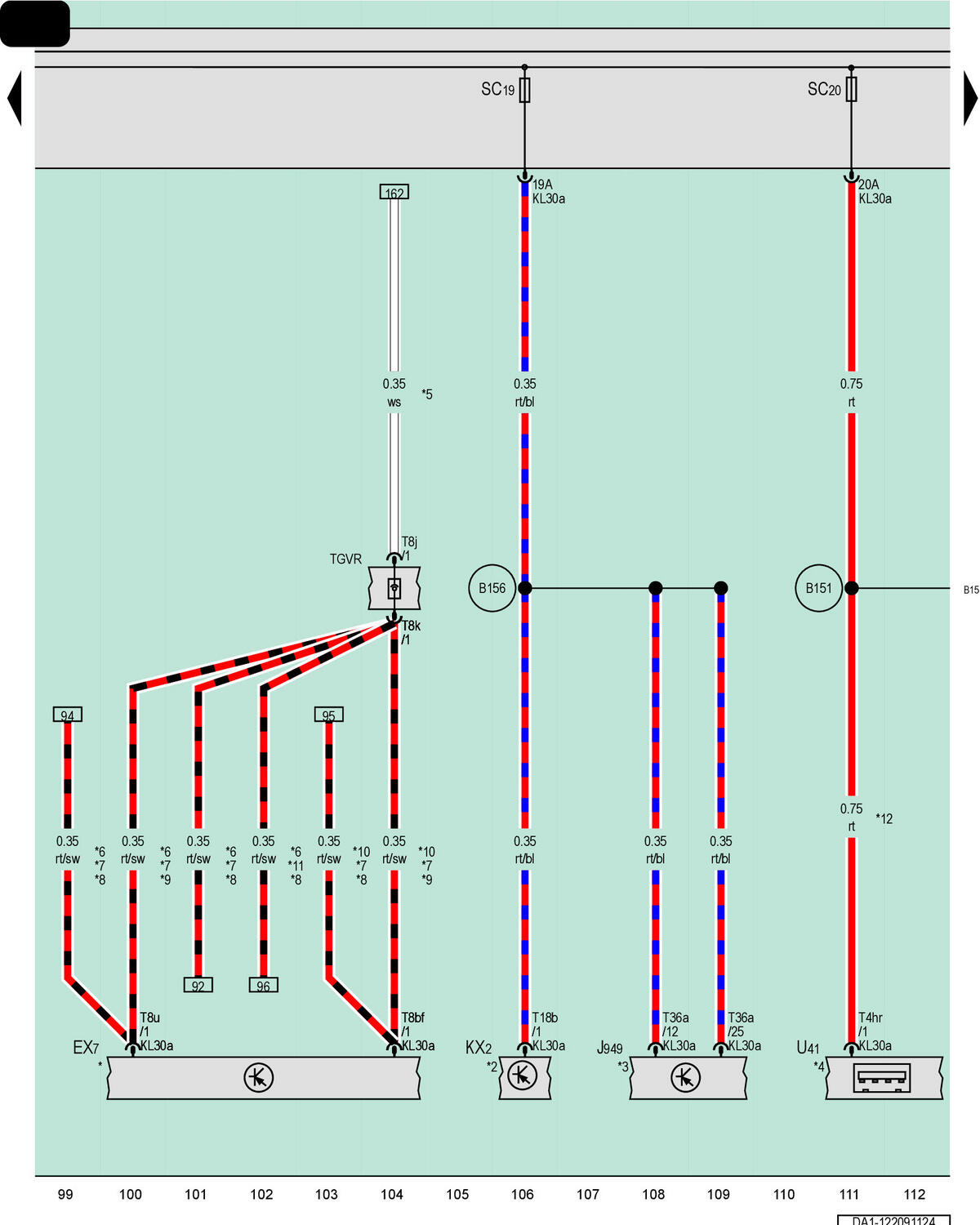

Front Passenger Exterior Door Handle, Control Module For Emergency Call Module And Communication Unit, Instrument Cluster, Fuse Panel C, USB Connection 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX7

Front Passenger Exterior Door Handle

J949

Control Module for Emergency Call Module and Communication Unit

KX2

Instrument Cluster

Fuse Panel C

SC19

Fuse 19 (On Fuse Panel C)

SC20

Fuse 20 (On Fuse Panel C)

T4hr

4-Pin Connector, Blue

T8bf

8-Pin Connector, Blue

T8j

8-Pin Connector, Black

T8k

8-Pin Connector, Black

T8u

8-Pin Connector, Black

T18b

18-Pin Connector, Black

T36a

36-Pin Connector, Black

TGVR

Right Front Exterior Door Handle Coupling Point

U41

USB Connection 1

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

B156

Positive Connection 30a (in Interior Wiring Harness)

Refer to the Applicable Access/Start Authorization System Wiring Diagram

Refer to Applicable Wiring Diagram for Instrument Cluster

Refer to Applicable Emergency Call Module Wiring Diagram

Refer to the Applicable Multimedia System Wiring Diagram

For Vehicles without Peripheral Camera

For Vehicles with Access/Start Authorization System

For Vehicles with Near Field Communication

For RHD Vehicles

For LHD Vehicles

*10

For Vehicles Without Access/Start Authorization System

*11

For Vehicles Without Near Field Communication

*12

For Vehicles with USB Connection for Increased Charging Capacity
