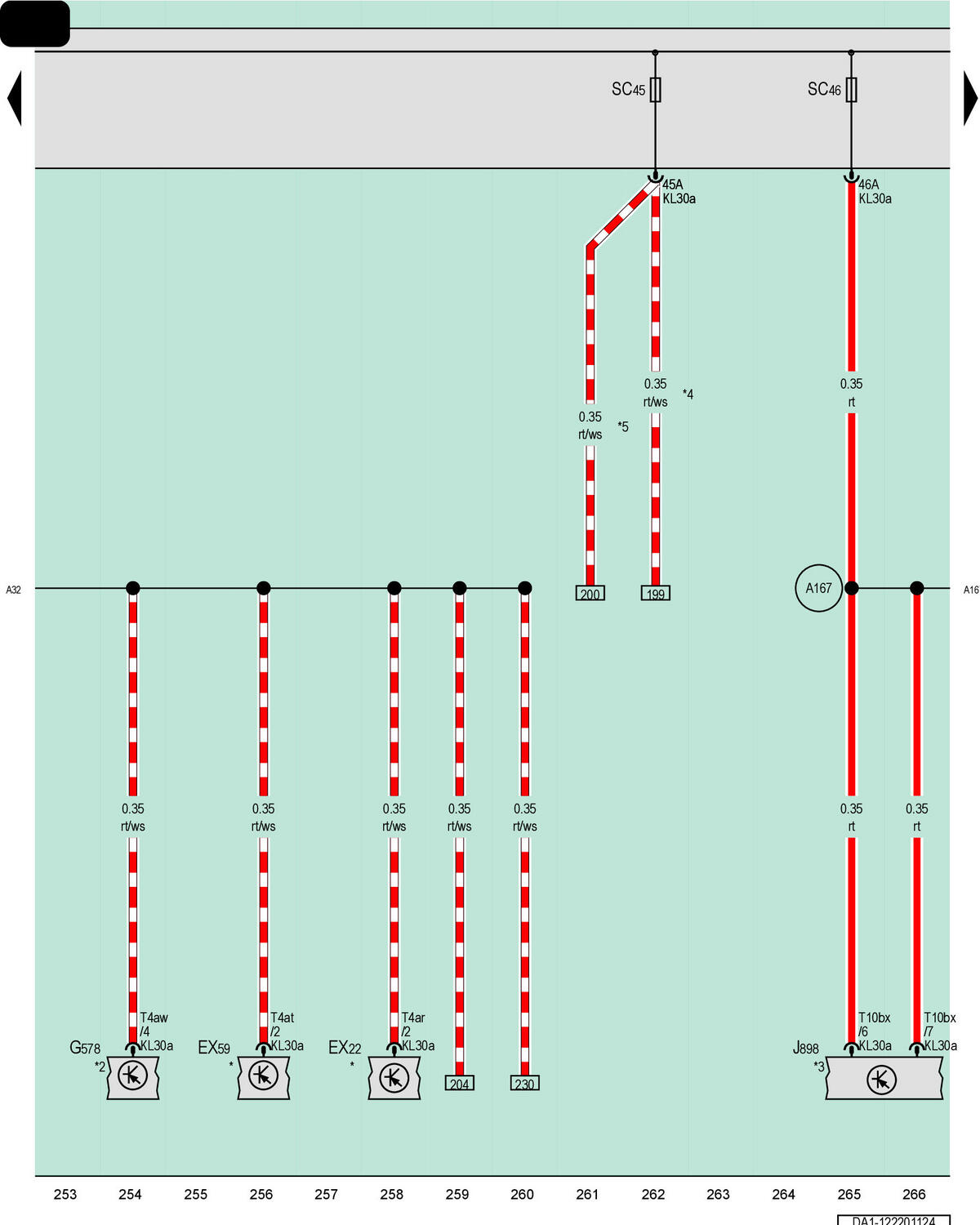

Center Instrument Panel Switch Module, Illumination Control Head, Anti-Theft Alarm System Sensor, Windshield Projection Head Up Display Control Module, Fuse Panel C
EX22
Center Instrument Panel Switch Module
EX59
Illumination Control Head
G578
Anti-Theft Alarm System Sensor
J898
Windshield Projection Head Up Display Control Module
SC
Fuse Panel C
SC45
Fuse 45 (On Fuse Panel C)
SC46
Fuse 46 (On Fuse Panel C)
T4ar
4-Pin Connector, Red
T4at
4-Pin Connector, Red
T4aw
4-Pin Connector, Black
T10bx
10-Pin Connector, Black
A32
Positive Connection (30) (in Instrument Panel Wiring Harness)
A167
Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)
*
Refer to Applicable Light Switch Wiring Diagram
*2
Refer to the Applicable Convenience System and Anti-Theft Alarm System Wiring Diagram
*3
Refer to Applicable Windshield Projection Wiring Diagram
*4
For Vehicles with Heated Steering Wheel
*5
For Vehicles Without Heated Steering Wheel
