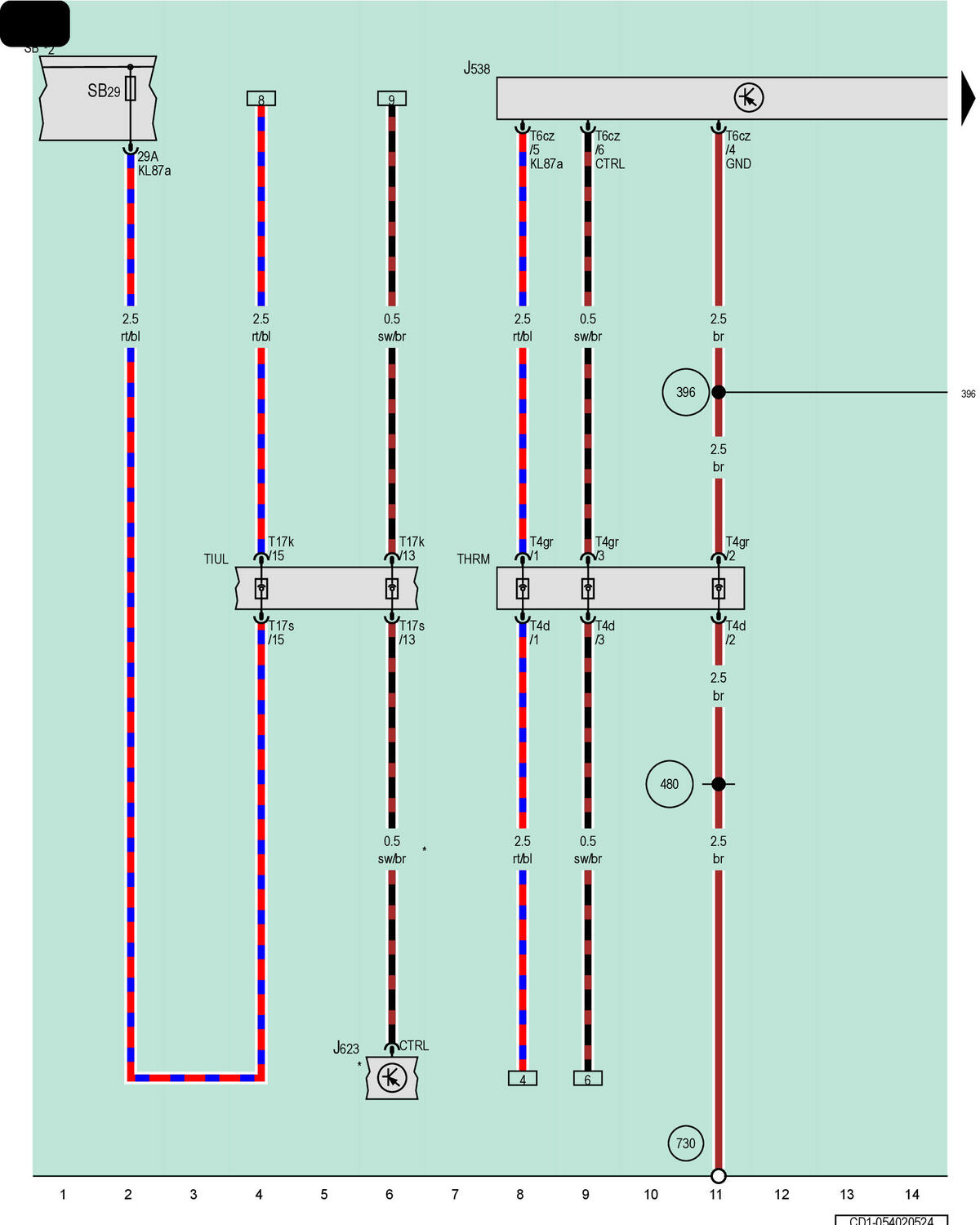

Fuel Pump Control Module, Engine/Motor Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

SB

Fuse Panel B

SB29

Fuse 29 (On Fuse Panel B)

T4d

4-Pin Connector, Black

T4gr

4-Pin Connector, Black

T6cz

6-Pin Connector, Black

T17k

17-Pin Connector, Blue

T17s

17-Pin Connector, Blue

THRM

Coupling Point in Luggage Compartment, Center

TIUL

Coupling Point in Interior, Bottom Left

396

Ground Connection 31 (in Main Wiring Harness)

480

Ground Connection (in Fuel Tank Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

*

Refer to Applicable Engine Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
