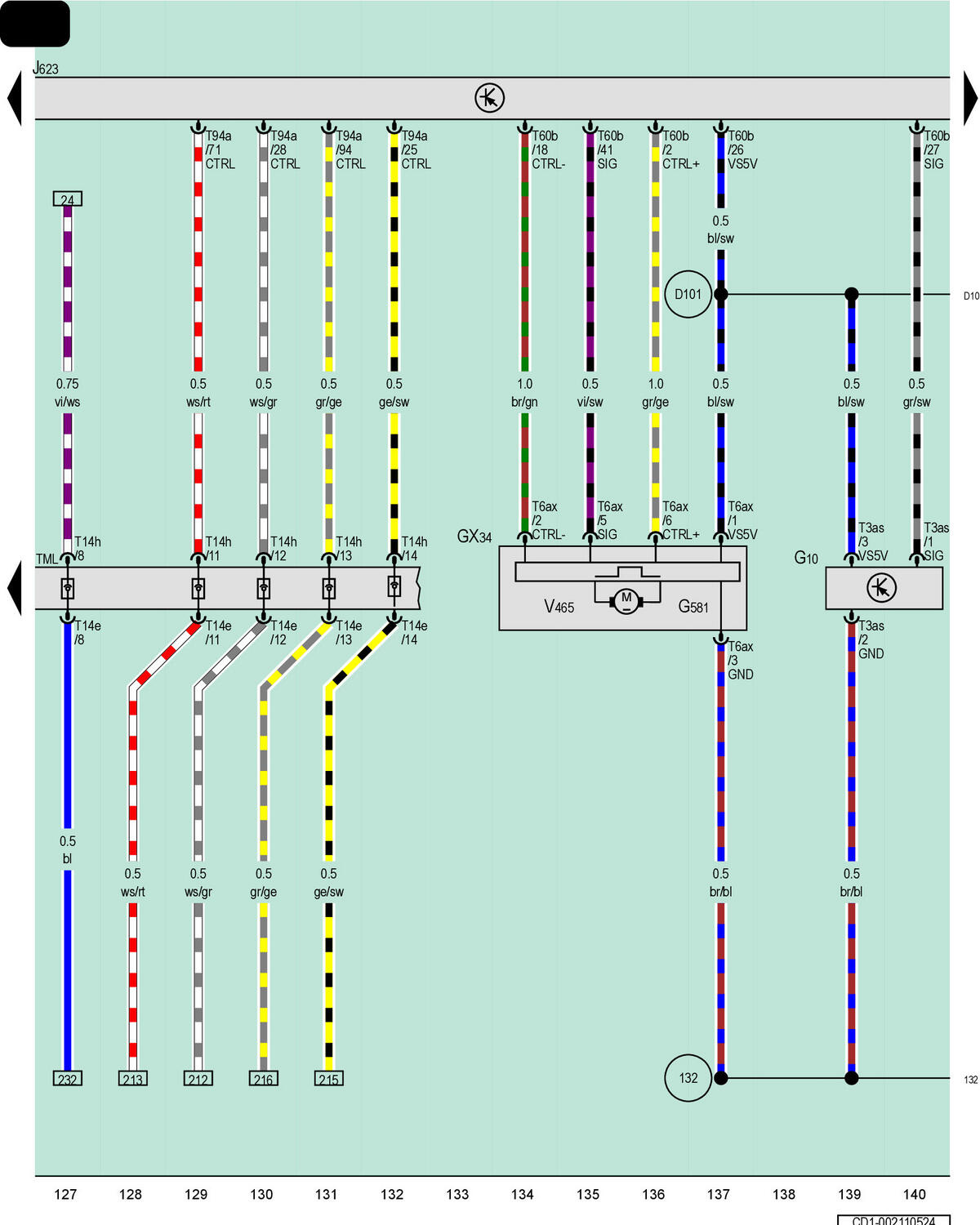

Oil Pressure Sensor, Charge Air Pressure Control Module, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G10

Oil Pressure Sensor

GX34

Charge Air Pressure Control Module

G581

Charge Air Pressure Actuator Position Sensor

J623

Engine/Motor Control Module

T3as

3-Pin Connector, Black

T6ax

6-Pin Connector, Gray

T14e

14-Pin Connector, Gray

T14h

14-Pin Connector, Gray

T60b

60-Pin Connector, Black

T94a

94-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

V465

Charge Air Pressure Actuator

132

Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)

D101

Connection 1 (in Engine/Motor Compartment Wiring Harness)
