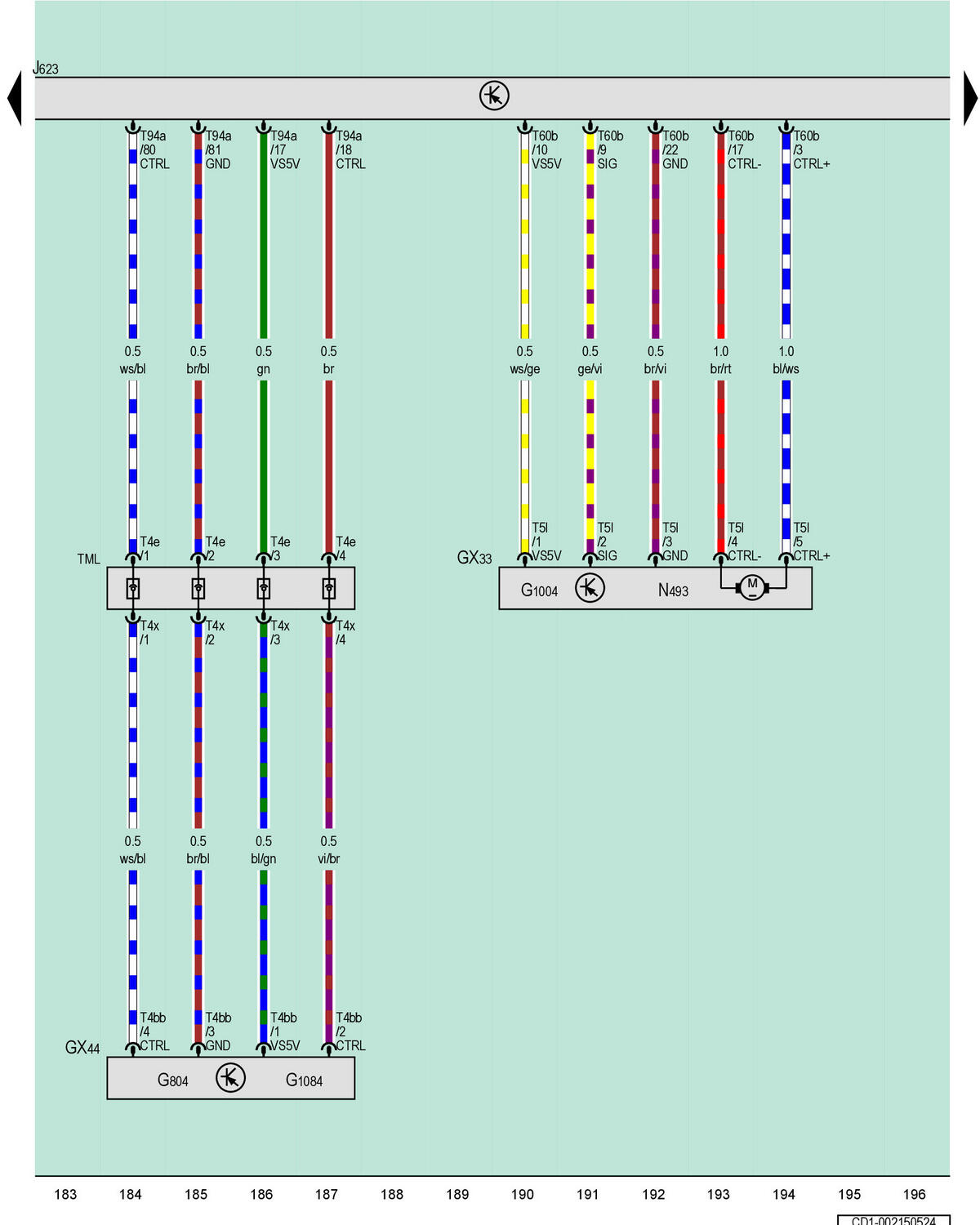

Engine Temperature Control Module, EVAP Canister Air Flushing Pressure Sensor, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX33

Engine Temperature Control Module

GX44

EVAP Canister Air Flushing Pressure Sensor

G804

EVAP Canister System Pressure Sensor

G1004

Engine Temperature Control Position Sensor

G1084

EVAP Canister Temperature Sensor

J623

Engine/Motor Control Module

N493

Engine Temperature Control Actuator

T4bb

4-Pin Connector, Black

T4e

4-Pin Connector, Black

T4x

4-Pin Connector, Black

T5l

5-Pin Connector, Brown

T60b

60-Pin Connector, Black

T94a

94-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left
