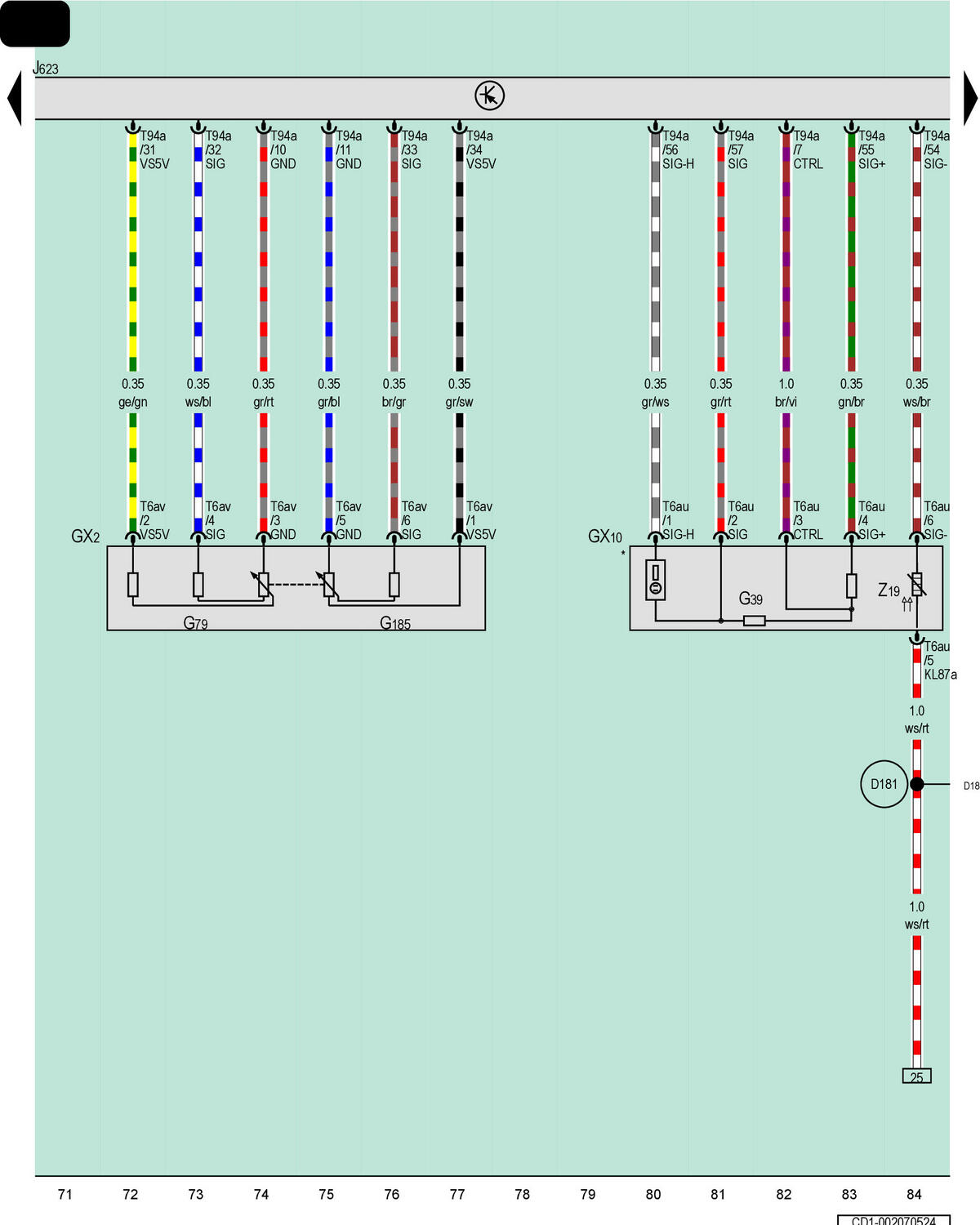

Accelerator Pedal Module, Oxygen Sensor 1 Before Catalytic Converter, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX2

Accelerator Pedal Module

GX10

Oxygen Sensor 1 Before Catalytic Converter

G39

Heated Oxygen Sensor

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J623

Engine/Motor Control Module

T6au

6-Pin Connector, Black

T6av

6-Pin Connector, Black

T94a

94-Pin Connector, Black

Z19

Oxygen Sensor Heater

D181

Connection 2 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Pre-Wired Component
