Control Module For Adaptive Cruise Control J428, Removing And Installing: Removing

If the control module for adaptive cruise control is replaced, perform the test plan for replacing the control module.

-- Perform the function "Control Module for Adaptive Cruise Control" using the Vehicle Diagnostic Tester . Refer to Diagnostic Entries .

Continuation

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

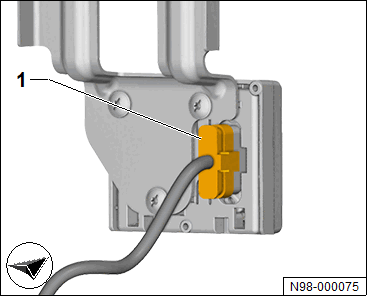

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

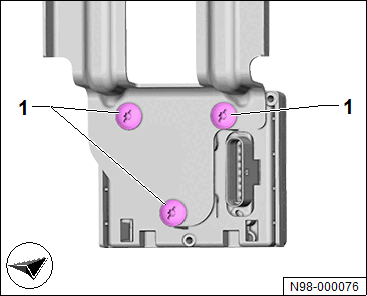

-- Remove the bolts -1- and remove the housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

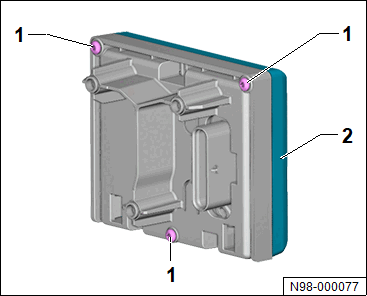

-- Remove the bolts -1- and remove the cover -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

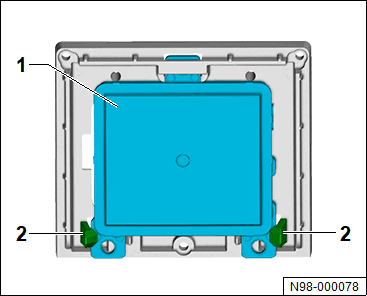

-- Release the hooks -2- and remove the control module -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
