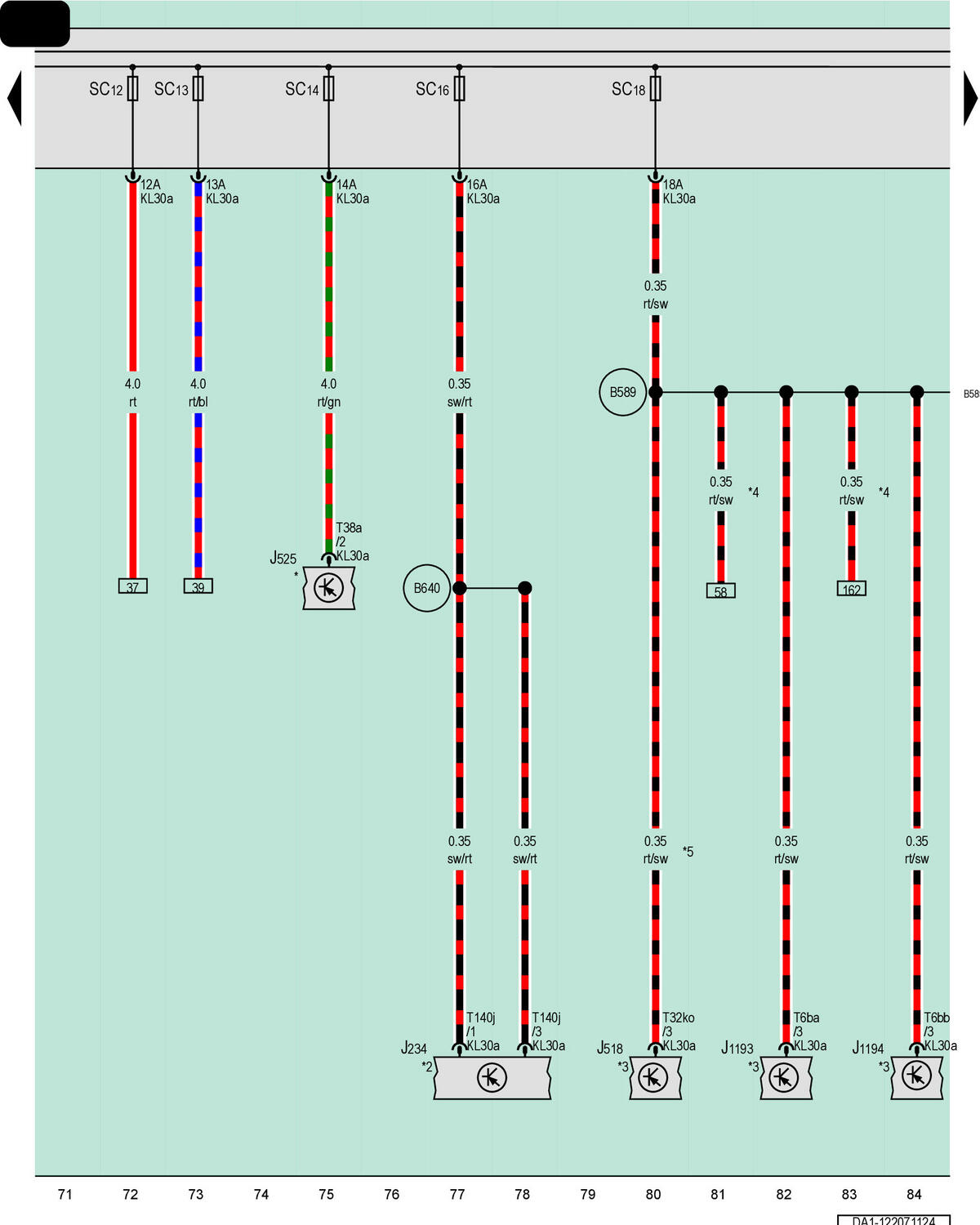

Airbag Control Module, Access/Start Authorization Control Module, Digital Sound System Control Module, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Fuse Panel C
J234
Airbag Control Module
J518
Access/Start Authorization Control Module
J525
Digital Sound System Control Module
J1193
Burglary Protection Control Module 3
J1194
Burglary Protection Control Module 4
SC
Fuse Panel C
SC12
Fuse 12 (On Fuse Panel C)
SC13
Fuse 13 (On Fuse Panel C)
SC14
Fuse 14 (On Fuse Panel C)
SC16
Fuse 16 (On Fuse Panel C)
SC18
Fuse 18 (On Fuse Panel C)
T6ba
6-Pin Connector, Black
T6bb
6-Pin Connector, Black
T32ko
32-Pin Connector, Gray
T38a
38-Pin Connector, Black
T140j
140-Pin Connector, Yellow
B589
Connection 49A (in Interior Wiring Harness)
B640
Connection 54 (in Interior Wiring Harness) 3
*
Refer to Applicable Sound System Wiring Diagram
*2
Refer to Applicable Airbag Wiring Diagram
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
For Vehicles without Peripheral Camera
*5
For LHD Vehicles
