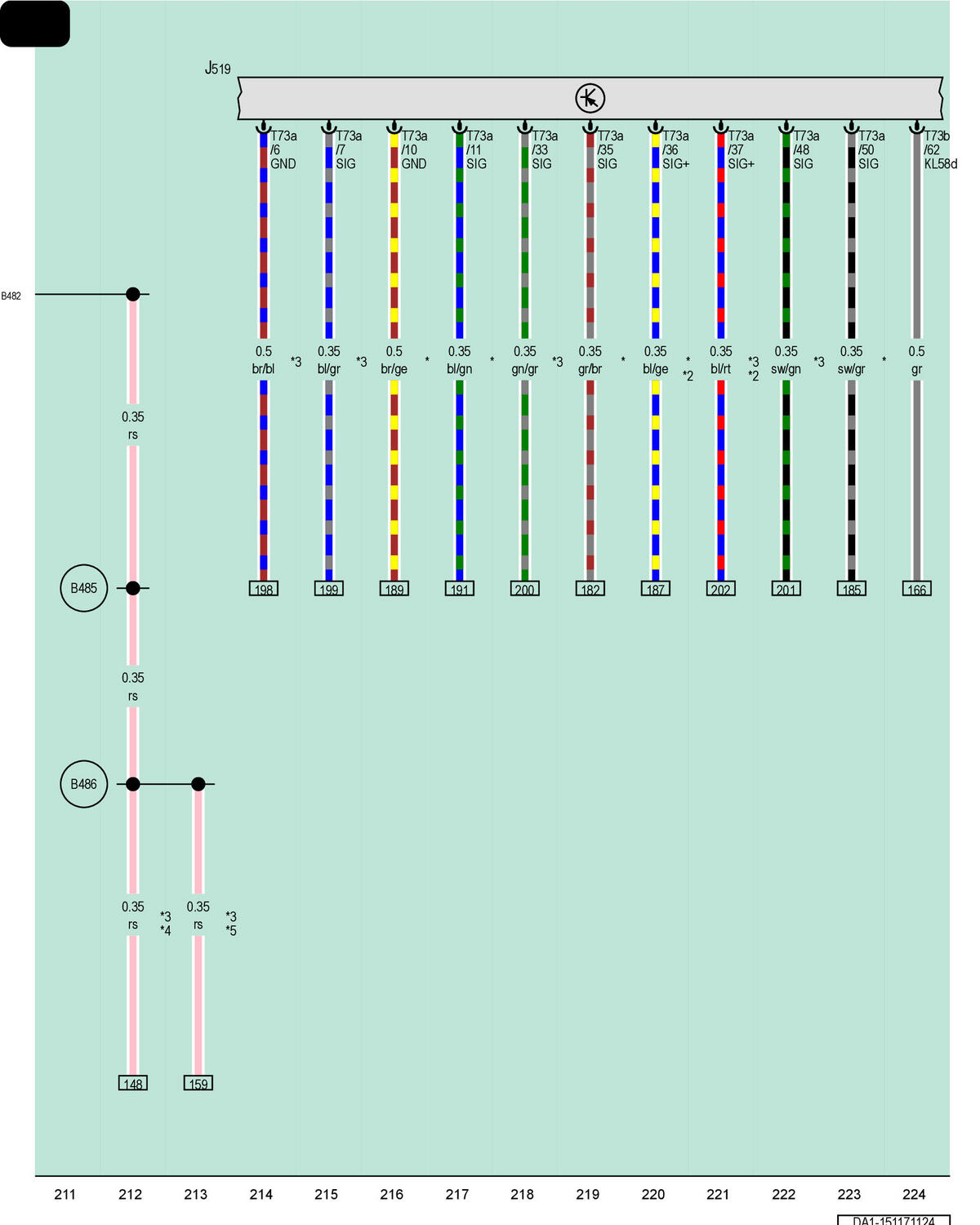

Vehicle Electrical System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

B482

Connection 18 (in Main Wiring Harness)

B485

Connection 21 (in Main Wiring Harness)

B486

Connection 22 (in Main Wiring Harness)

*

For LHD Vehicles

*2

For Vehicles with Safe Function

*3

For RHD Vehicles

*4

For Vehicles without Peripheral Camera

*5

For Vehicles with Peripheral Camera
