Overview - Bevel Box
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- Bolt
- Replace after removing
- 25 Nm
- Heat Shield
- Nut
- Double Bolt
- Heat Shield
- Bolt
- Bevel Box
- Bolt
- Quantity: 4
- Replace after removing
- 40 Nm +90°
- Transmission Support
- Depending on the equipment/version
- Bolt
- Bolt
- Quantity: 2
- Refer to Fig 2
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
| Step |
Bolts |
Tightening Specification/Additional Turn |
| 1. |
-1- and -2- |
all the way by hand |
| 2. |
-2- |
40 Nm |
| 3. |
-1- |
40 Nm |

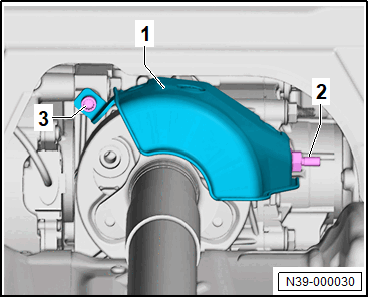

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
| Bolt, double bolt |
Tightening Specification |
| -3- |
40 Nm |
| -2- |
40 Nm |
