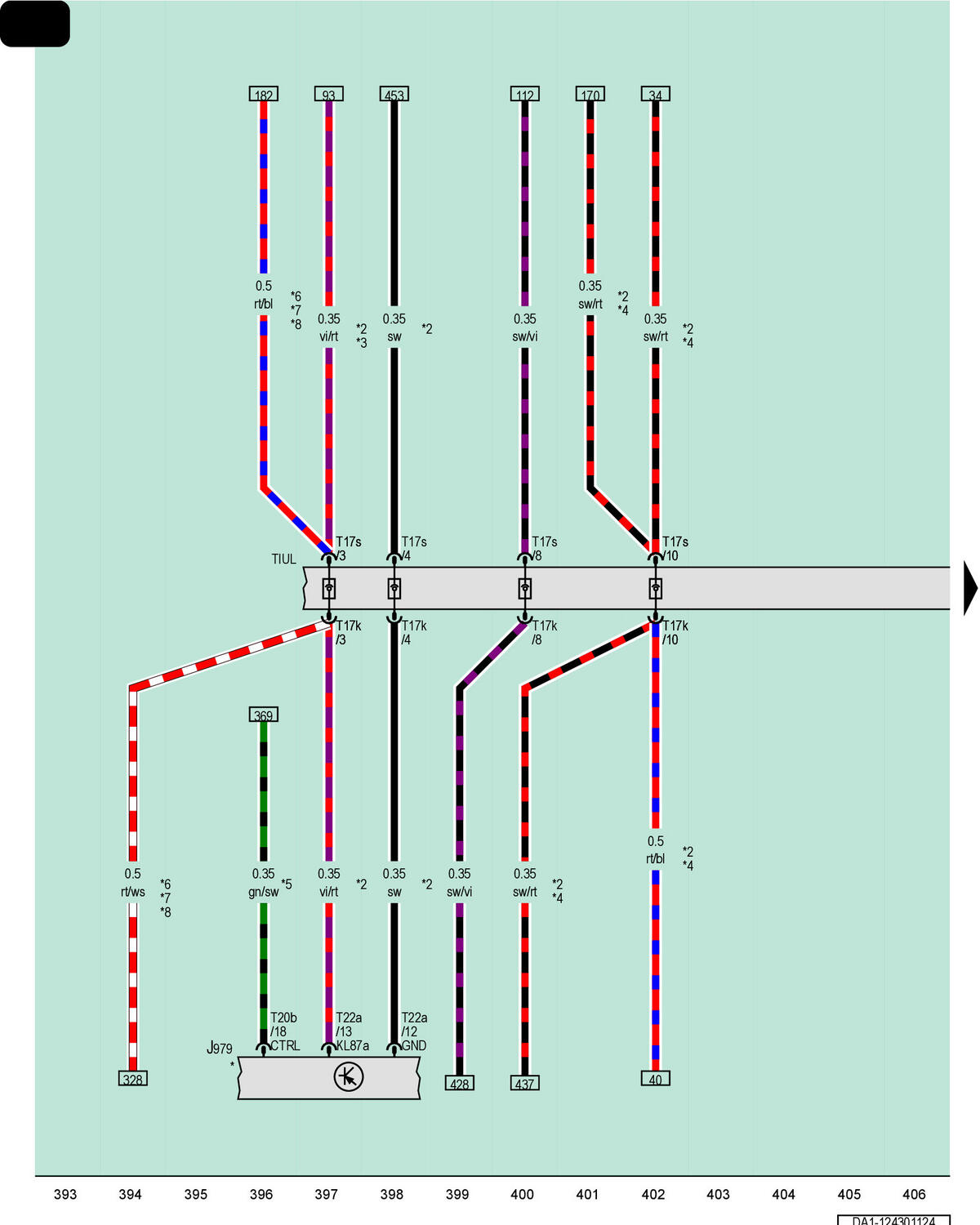

Heating And Air Conditioning Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J979

Heating and Air Conditioning Control Module

T17k

17-Pin Connector, Blue

T17s

17-Pin Connector, Blue

T20b

20-Pin Connector, Black

T22a

22-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

*

Refer to Applicable A/C System Wiring Diagram

*2

For Vehicles with Diesel Engine

*3

For Vehicles with Auxiliary Heater

*4

Refer to Applicable Reducing Agent Metering System Wiring Diagram

*5

For Vehicles with Hybrid Drive

*6

Depending on Equipment

*7

For Vehicles with 2.0L Gasoline Engine

*8

For Vehicles with Top Sport Equipment
