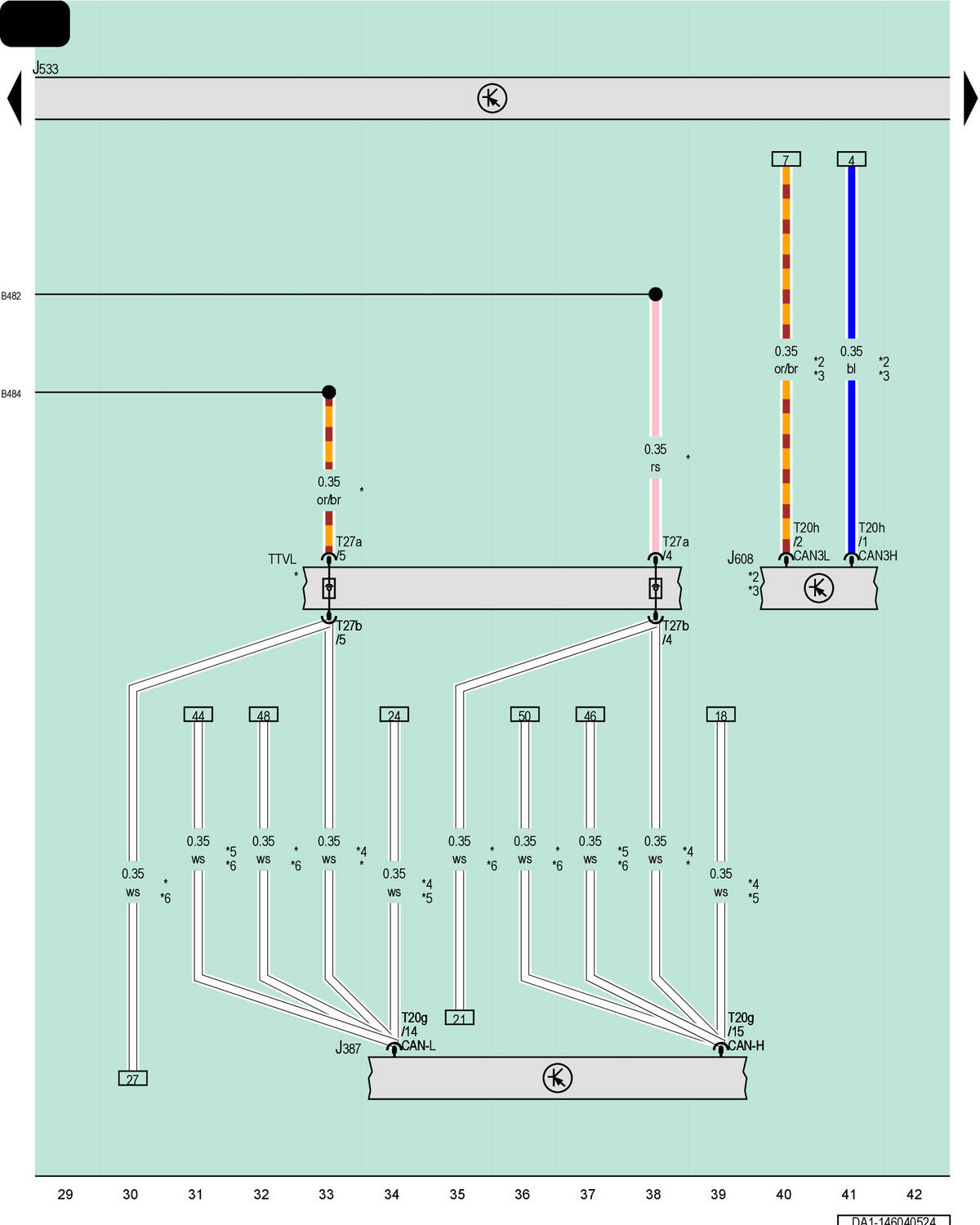

Front Passenger Door Control Module, Data Bus On Board Diagnostic Interface, Special Purpose Vehicle Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J387

Front Passenger Door Control Module

J533

Data Bus on Board Diagnostic Interface

J608

Special Purpose Vehicle Control Module

T20g

20-Pin Connector, White

T20h

20-Pin Connector, Black

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

TTVL

Left Front Door Coupling Point

B482

Connection 18 (in Main Wiring Harness)

B484

Connection 20 (in Main Wiring Harness)

*

For Vehicles without Peripheral Camera

*2

Refer to Applicable Special Purpose Vehicle Wiring Diagram

*3

From July 2024

*4

For RHD Vehicles

*5

For Vehicles with Peripheral Camera

*6

For LHD Vehicles
