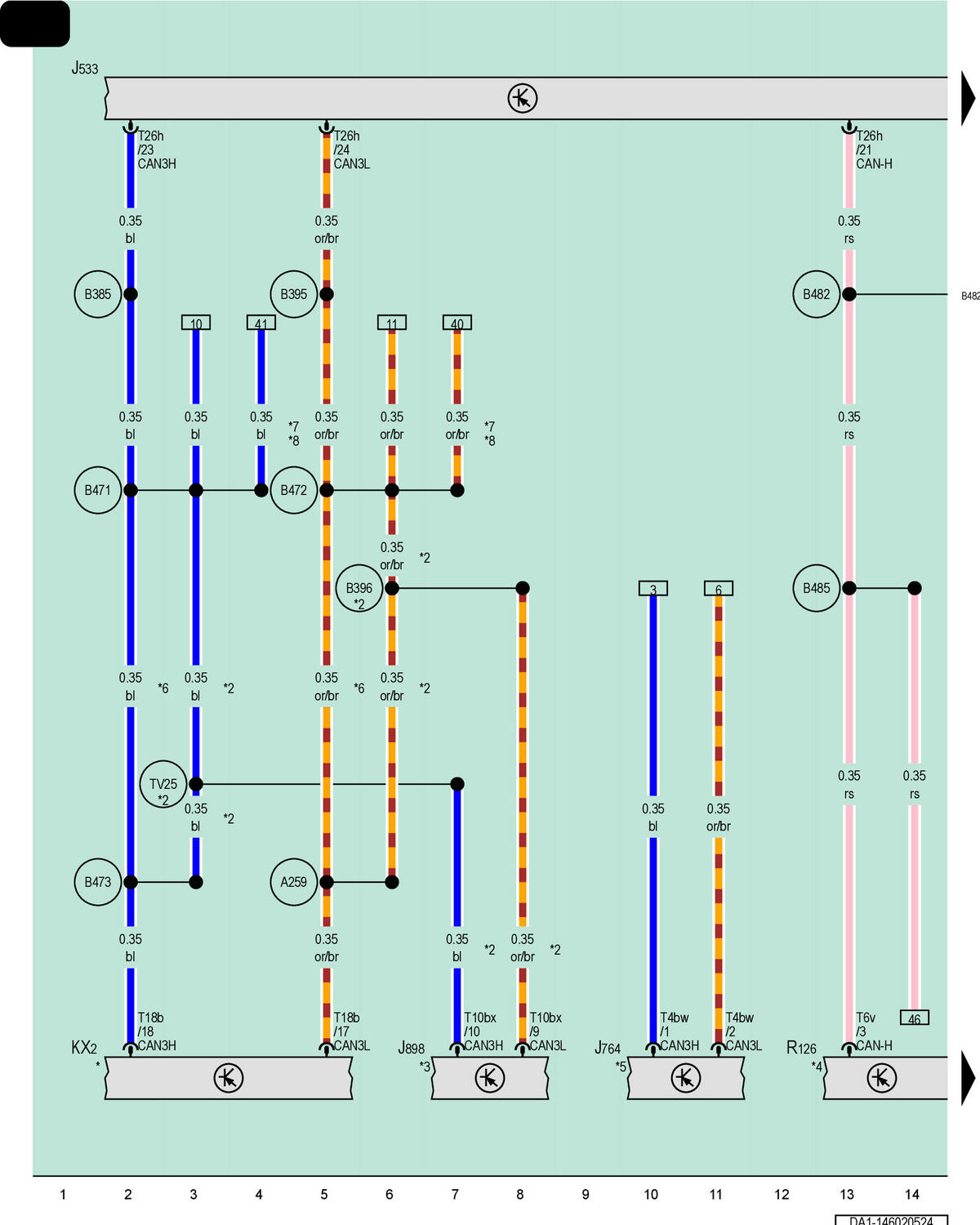

Data Bus On Board Diagnostic Interface, Electronic Steering Column Lock Control Module, Windshield Projection Head Up Display Control Module, Instrument Cluster, Telephone BASEPLATE
J533
Data Bus on Board Diagnostic Interface
J764
Electronic Steering Column Lock Control Module
J898
Windshield Projection Head Up Display Control Module
KX2
Instrument Cluster
R126
Telephone Baseplate
T4bw
4-Pin Connector, Black
T6v
6-Pin Connector, Brown
T10bx
10-Pin Connector, Black
T18b
18-Pin Connector, Black
T26h
26-Pin Connector, Black
A259
Connection 3 (in Instrument Panel Wiring Harness)
B385
Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)
B395
Powertrain CAN Bus Low Connection 6 (in Main Wiring Harness)
B396
Powertrain CAN Bus Low Connection 7 (in Main Wiring Harness)
B471
Connection 7 (in Main Wiring Harness)
B472
Connection 8 (in Main Wiring Harness)
B473
Connection 9 (in Main Wiring Harness)
B482
Connection 18 (in Main Wiring Harness)
B485
Connection 21 (in Main Wiring Harness)
TV25
Bus Systems Wire Junction 3
*
Refer to Applicable Wiring Diagram for Instrument Cluster
*2
For Vehicles with Windshield Projection
*3
Refer to Applicable Windshield Projection Wiring Diagram
*4
Refer to the Applicable Cell Phone System Wiring Diagram
*5
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*6
For Vehicles Without Windshield Projection
*7
Refer to Applicable Special Purpose Vehicle Wiring Diagram
*8
From July 2024
