Rear Peripheral Camera -R246-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN REAR SECTION OF VEHICLE .
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, SEDAN .

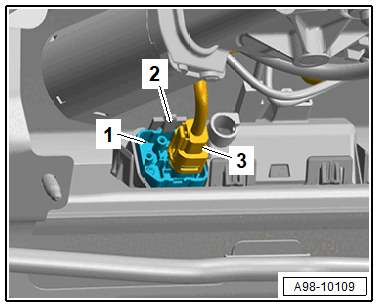

-- Release the retainer -2-.
-- Remove the peripheral camera -1- from the mount.
-- Disconnect the antenna wire -3-.
