Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2025 Audi S3, 2025 Audi RS 3, and 2025 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .
Vehicles with Radiator Shutter / RS 3
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Vehicles without Radiator Shutter
-- Remove the bumper cover end plate. Refer to OVERVIEW - BUMPER COVER .
-- Remove the lower air duct for the radiator. Refer to OVERVIEW - LOCK CARRIER .
Continuation for all vehicles

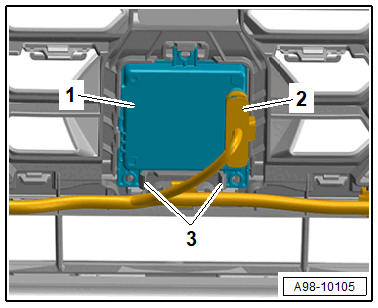

-- Disconnect the connector -2-.
-- Release the retainers -3-.
-- Guide out the control module -1- from the mount.
