Overview - Window Regulator

The overview shows the left side of the vehicle as an example

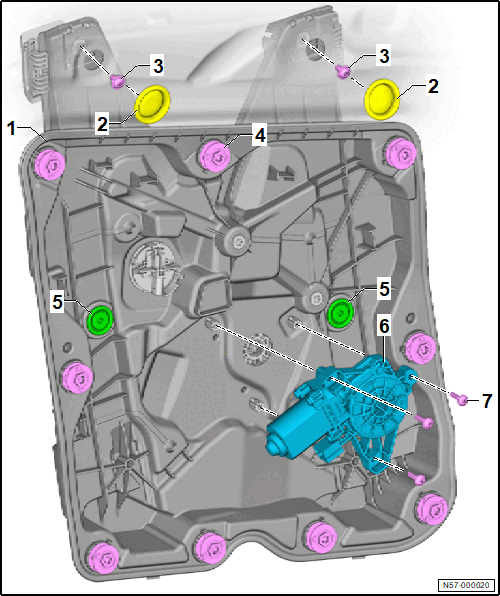

Fig 1: Exploded View Of Carrier For Door Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Window Regulator
   • Refer to WINDOW REGULATOR, REMOVING AND INSTALLING  .
2. Cap
   • Depending on the equipment/version
   • Quantity: 2
3. Bolt
   • Quantity: 2
   • 8 Nm
4. Clip
   • Quantity: 9
5. Cap
   • Quantity: 2
6. Driver Window Regulator Motor -V147- / Front Passenger Window Regulator Motor -V148-
   • Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING  .
7. Bolt
   • Quantity: 3
   • 3 Nm
