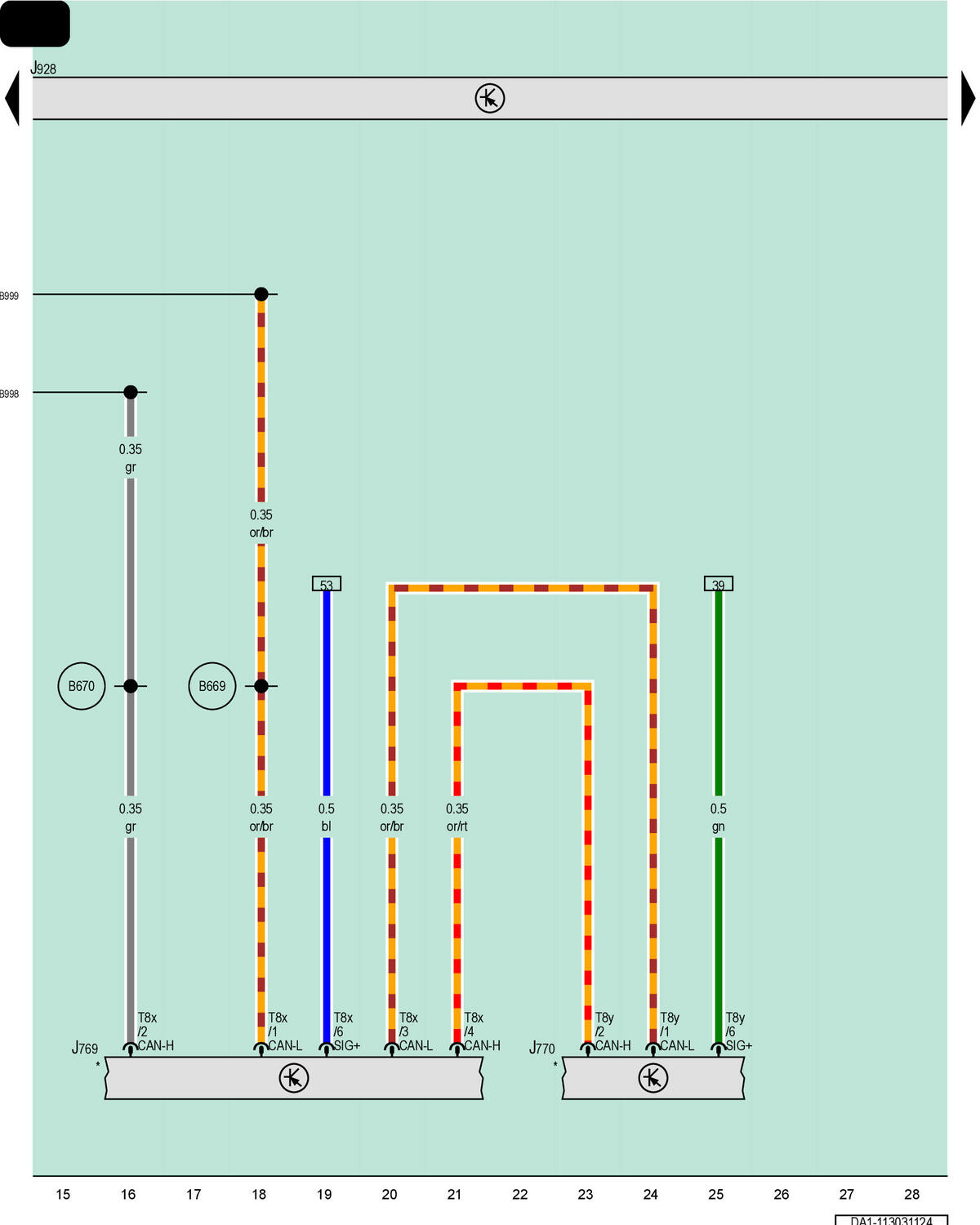

Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Peripheral Camera Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

J928

Peripheral Camera Control Module

T8x

8-Pin Connector, Black

T8y

8-Pin Connector, Black

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)

B670

CAN Bus Extended High Connection 3 (in Main Wiring Harness)

B998

Driver Assistance Systems CAN Bus High Connection 9 (in Main Wiring Harness)

B999

Driver Assistance Systems CAN Bus Low Connection 9 (in Main Wiring Harness)

*

Refer to Applicable Lane Change Assistance Wiring Diagram
