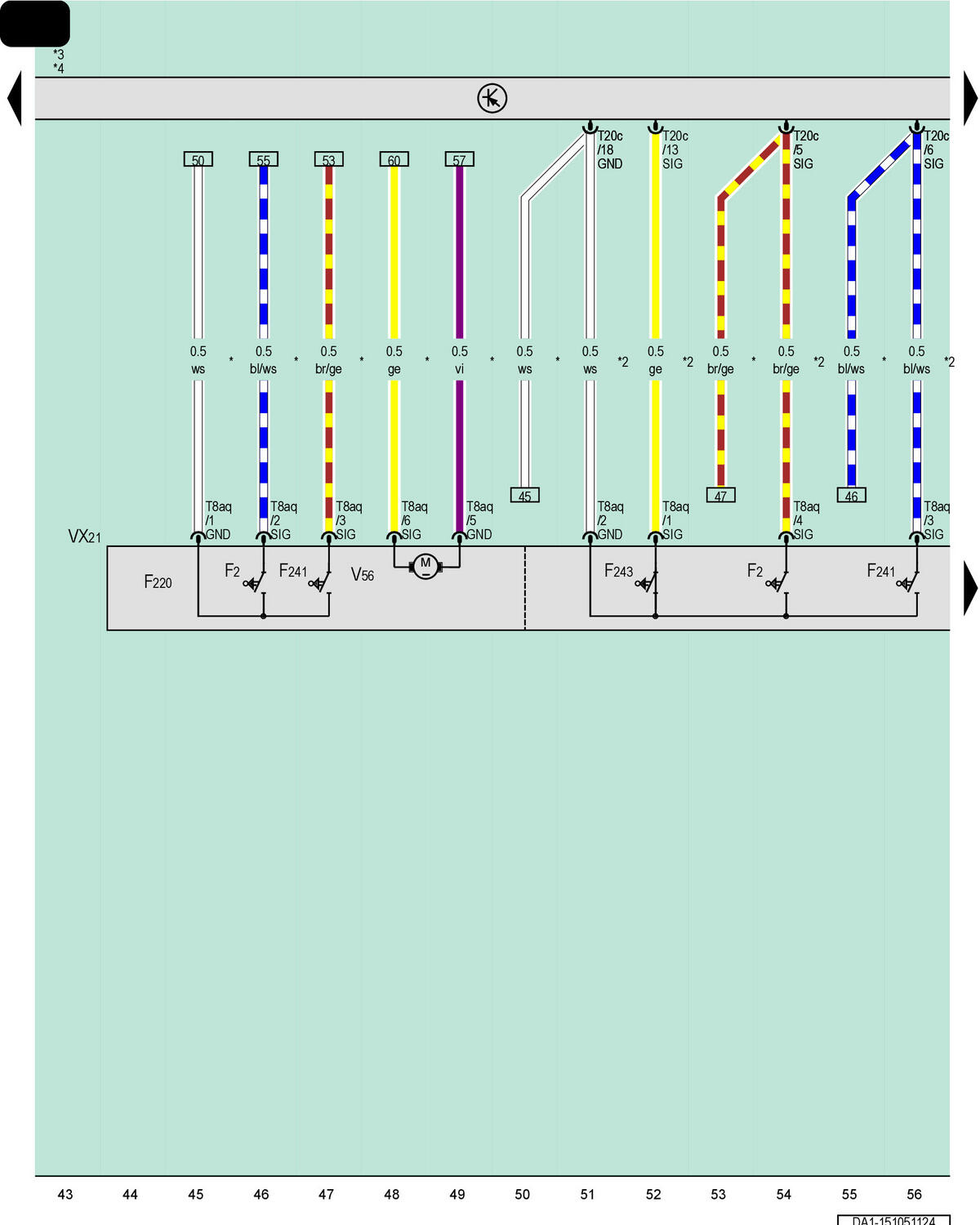

Driver Door Control Module, Driver Door Lock Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F2

Driver Door Contact Switch

F220

Driver Central Locking Lock Unit

F241

Driver Lock Cylinder Contact Switch

F243

Driver Door Central Locking -Safe- Function Actuator

J386

Driver Door Control Module

T8aq

8-Pin Connector, Black

T20c

20-Pin Connector, White

VX21

Driver Door Lock Unit

V56

Driver Door Central Locking System Motor

*

For Vehicles Without Safe Function

*2

For Vehicles with Safe Function

*3

Refer to Applicable Wiring Diagram for Interior Lamps

*4

For Vehicles Without Ambient Lighting
