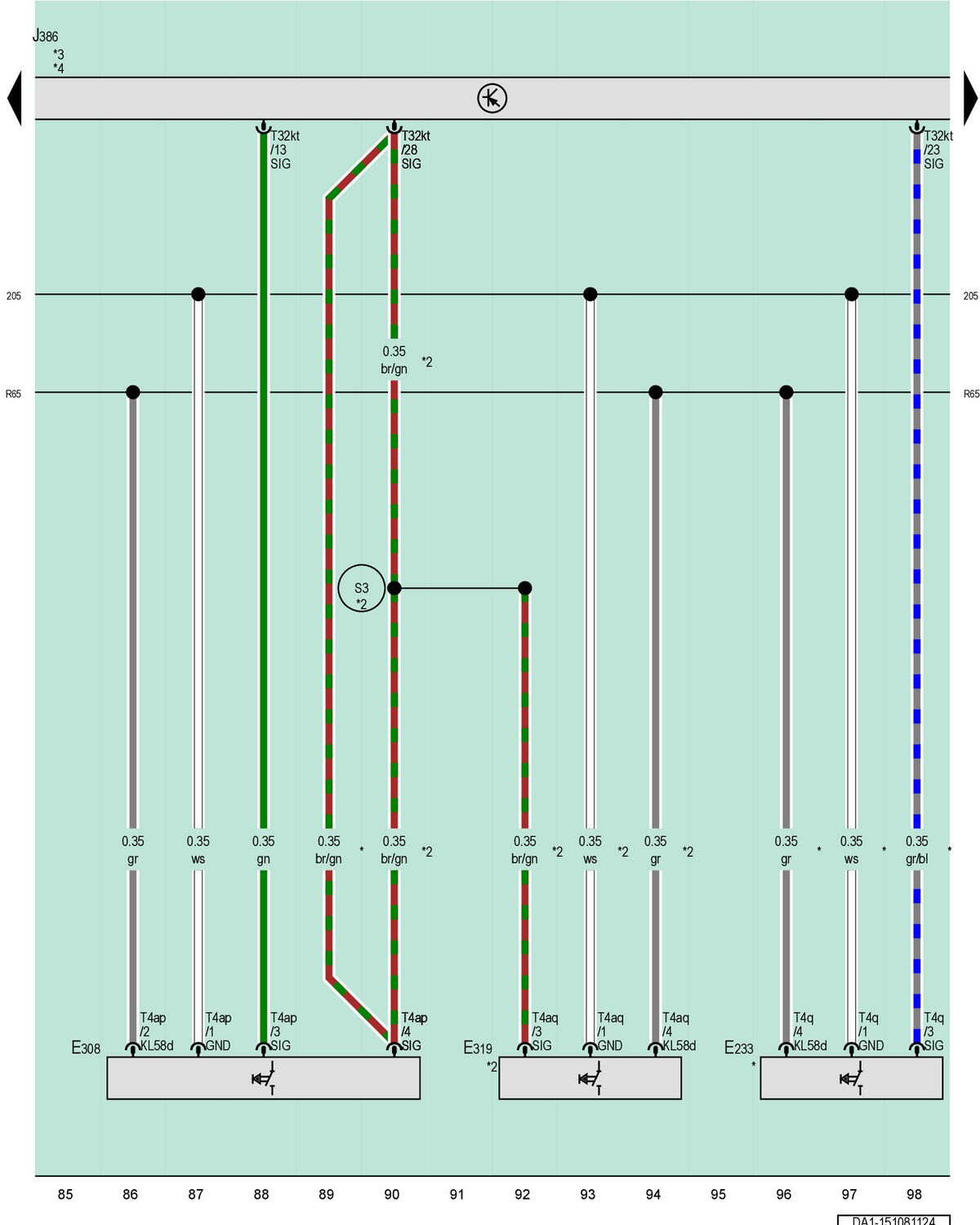

Rear Lid Remote Release Button, Driver Interior Locking Button, Fuel Filler Door Release Button, Driver Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E233

Rear Lid Remote Release Button

E308

Driver Interior Locking Button

E319

Fuel Filler Door Release Button

J386

Driver Door Control Module

T4ap

4-Pin Connector, Blue

T4aq

4-Pin Connector, Black

T4q

4-Pin Connector, Black

T32kt

32-Pin Connector, Blue

205

Ground Connection (in Driver Door Wiring Harness)

R65

Positive Connection (58) (in Driver Door Wiring Harness)

S3

Switch/Control Module Connection 1 (in Central Locking System Wiring Harness)

*

For Vehicles Without Hybrid Drive

*2

For Vehicles with Hybrid Drive

*3

Refer to Applicable Wiring Diagram for Interior Lamps

*4

For Vehicles Without Ambient Lighting
