Body Front

NOTE:

If the body dimensions at the front longitudinal member are not within the tolerance, checks must be performed to determine if the tensions are located within the vehicle structure. For this, loosen the threaded connections at the longitudinal member.

Take the dimensions again.

Only if the dimensions are still not within the tolerance, continue with the repair.

Front Vehicle Body Dimensions

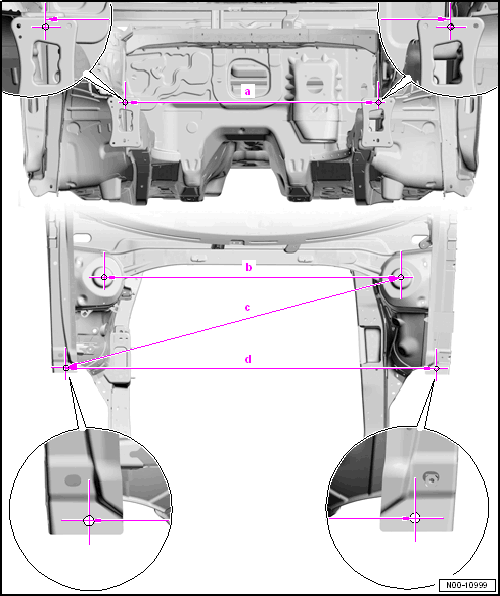

Fig 1: Engine Compartment Body Dimension And Measurement Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a -
975 mm ± 2.0 mm
- Body dimension between the holes on front longitudinal member back plate
b -
1125 mm ± 2.0 mm
- Body dimension between the wheel housings
c -
1310 mm ± 2.0 mm
- Diagonal dimension between the front holes on the upper longitudinal member and suspension strut tower
d -
1400 mm ± 2.0 mm
- Body dimension between the holes on the upper wheel housing longitudinal member
