Component Location Overview - Abs/Esp

The overview is shown as an example for LHD vehicles. The layout is a mirror image in RHD vehicles.

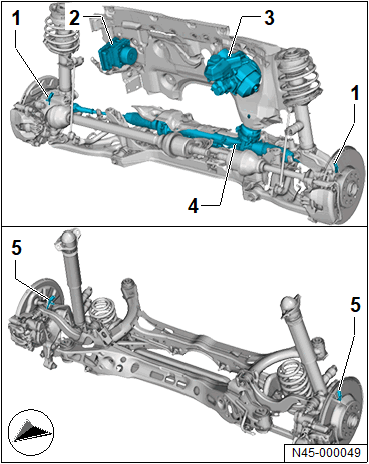

Fig 1: Component Location Overview - ABS/ESP

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Right Front ABS Wheel Speed Sensor -G45- / Left Front ABS Wheel Speed Sensor -G47-
   • Refer to Overview - Front Axle Speed Sensor  .
   • Refer to Right and Left Front ABS Wheel Speed Sensor G45/G47, Removing and Installing  .
2. ABS Control Module -J104- / ABS Hydraulic Unit -N55-
   • Refer to Overview - Control Module and Hydraulic Unit  .
   • Refer to ABS Control Module J104/ABS Hydraulic Unit N55, Removing and Installing  .
3. Brake Booster -NX6-
   • Refer to Overview - Brake Booster/Brake Master Cylinder .
   • Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
4. Steering Angle Sensor -G85-
   • Cannot be replaced separately
   • Refer to STEERING GEAR, REMOVING AND INSTALLING .
5. Right Rear ABS Wheel Speed Sensor -G44- / Left Rear ABS Wheel Speed Sensor -G46-
   • Refer to Overview - Rear Axle Speed Sensor  .
   • Refer to Right and Left Rear ABS Wheel Speed Sensor G44/G46, Removing and Installing  .
