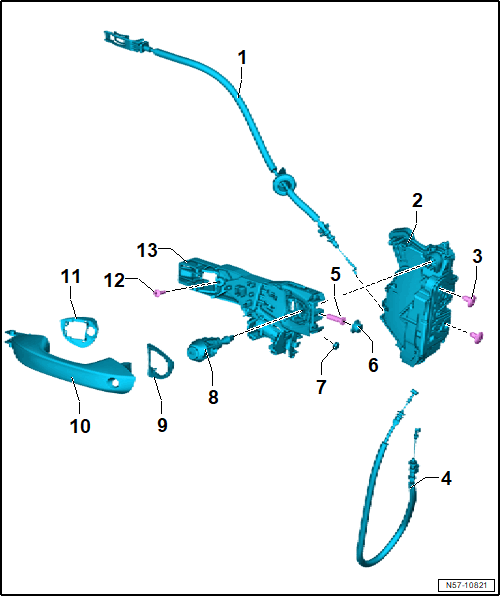

Overview - Lock Unit
- Operating Cable
- From the lock unit to the interior door mechanism
- Refer to Interior Door Mechanism Operating Cable, Removing and Installing .
- Driver Door Lock Unit -VX21- / Front Passenger Door Lock Unit -VX22-
- with Driver Door Contact Switch - F2- / Front Passenger Door Contact Switch - F3-
- with Driver Central Locking Lock Unit -F220- / Front Passenger Central Locking Lock Unit - F221-
- with Driver Lock Cylinder Contact Switch -F241- / Front Passenger Door Central Locking -Safe- Function Actuator -F244-
- Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Always replace after removing
- 18 Nm
- Operating Cable
- From the lock unit -2- to the mounting bracket -13-
- Refer to EXTERIOR DOOR OPERATING CABLE, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Cap
- Cap
- Lock Cylinder
- Driver side
- Refer to Lock Cylinder, Removing and Installing .
- Backing Plate
- Driver Exterior Door Handle -EX6- / Front Passenger Exterior Door Handle -EX7-
- With Driver Side Exterior Door Handle Illumination Lamp -L283- / Front Passenger Exterior Door Handle Illumination Lamp -L284-
- With Left Front Exterior Door Handle Touch Sensor -G605- / Right Front Exterior Door Handle Touch Sensor -G606-
- Refer to OVERVIEW - EXTERIOR DOOR HANDLE .
- Refer to EXTERIOR DOOR HANDLE, REMOVING AND INSTALLING .
- Refer to EXTERIOR DOOR HANDLE, DISASSEMBLING AND ASSEMBLING .
- Backing Plate
- Bolt
- 3.5 Nm
- Mounting Bracket
- Refer to Mounting Bracket, Removing and Installing .
