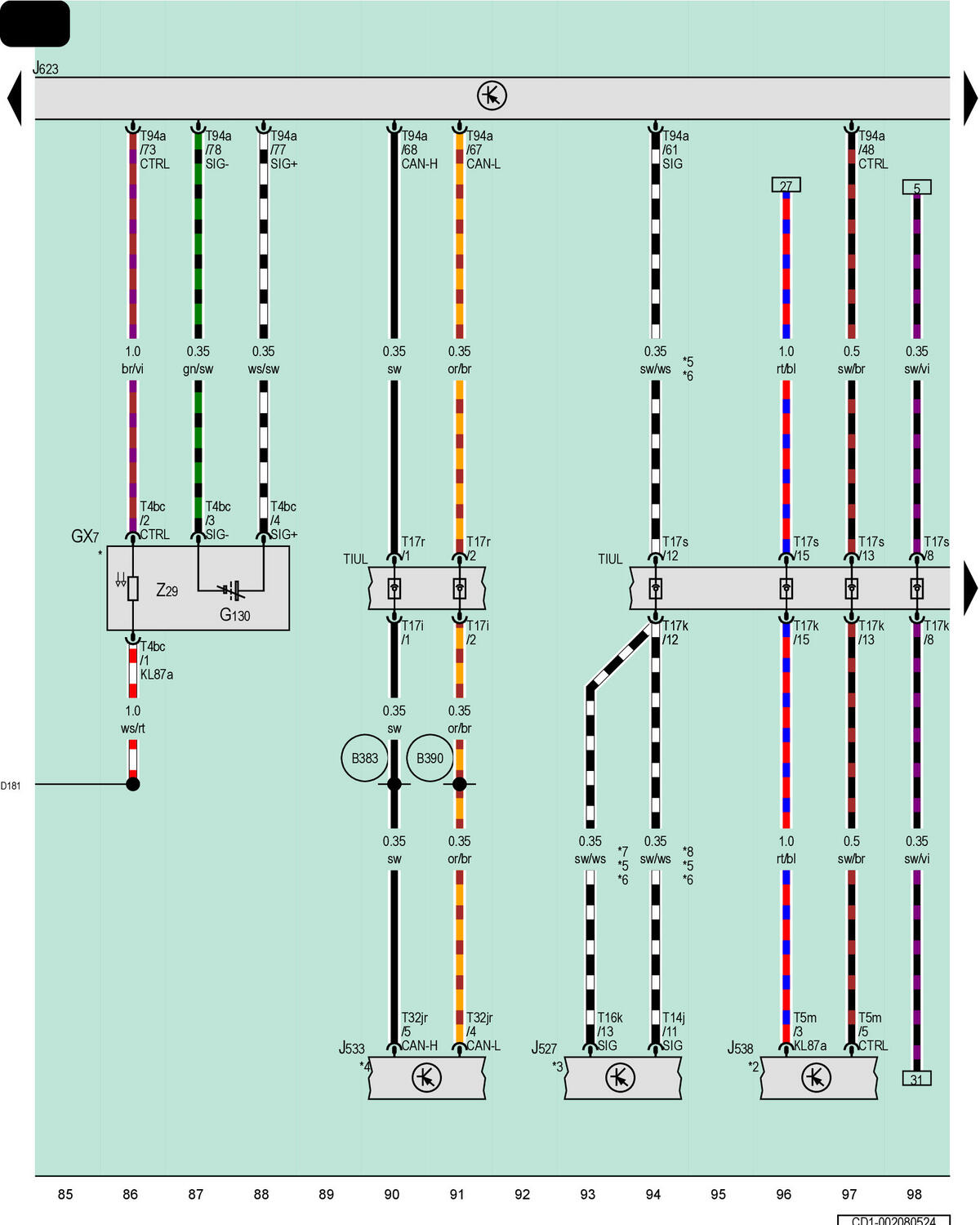

Oxygen Sensor 1 After Catalytic Converter, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine/Motor Control Module
GX7
Oxygen Sensor 1 After Catalytic Converter
G130
Oxygen Sensor After Catalytic Converter
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J538
Fuel Pump Control Module
J623
Engine/Motor Control Module
T4bc
4-Pin Connector, Black
T5m
5-Pin Connector, Black
T14j
14-Pin Connector, Black
T16k
16-Pin Connector, Black
T17i
17-Pin Connector, Brown
T17k
17-Pin Connector, Blue
T17r
17-Pin Connector, Brown
T17s
17-Pin Connector, Blue
T32jr
32-Pin Connector, Black
T94a
94-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
Z29
Heater for Oxygen Sensor 1 After Catalytic Converter
B383
Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390
Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
D181
Connection 2 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Pre-Wired Component
*2
Refer to Applicable Fuel System Wiring Diagram
*3
Refer to Applicable Steering Column Electronics Wiring Diagram
*4
Refer to Applicable Wiring Diagram for Data Bus Networking
*5
For Vehicles with Cruise Control System
*6
Through November 2024
*7
For Vehicles Without Heated Steering Wheel
*8
For Vehicles with Heated Steering Wheel
