Overview - Digital Sound System Control Module

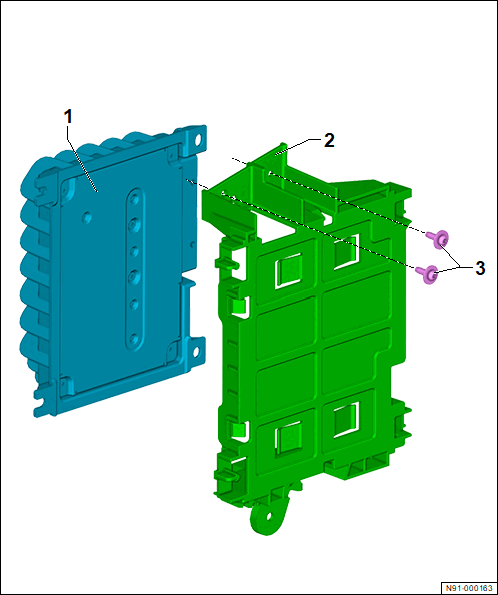

GWWN91-000163Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Digital Sound System Control Module -J525-
  2. Bracket
  3. Bolt
    • Quantity: 2
    • 2 Nm
