Securing On Engine And Transmission Holder

Special tools and workshop equipment required

Shop Crane :VAS 6100

Fig 1: Identifying Shop Crane
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Bracket :VAS 6095A

Fig 2: Identifying Engine And Gearbox Bracket VAS 6095A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Universal Support :VAS 6095/2

Remember there is fluid in the transmission. Do not turn the transmission with the vents facing downward when transporting or when it is on the assembly stand.

NOTE:

Remove the bleed cap if necessary and seal using suitable oil-tight plugs.

-- Install the Universal Support :VAS 6095/2 to the Engine and Gearbox Bracket :VAS 6095A .

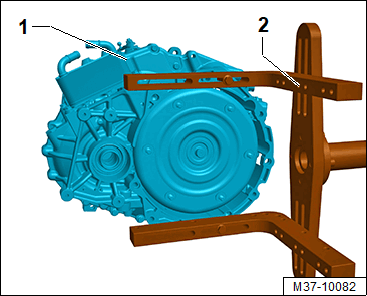

-- Secure the transmission -1- to the Universal Support :VAS 6095/2 -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
