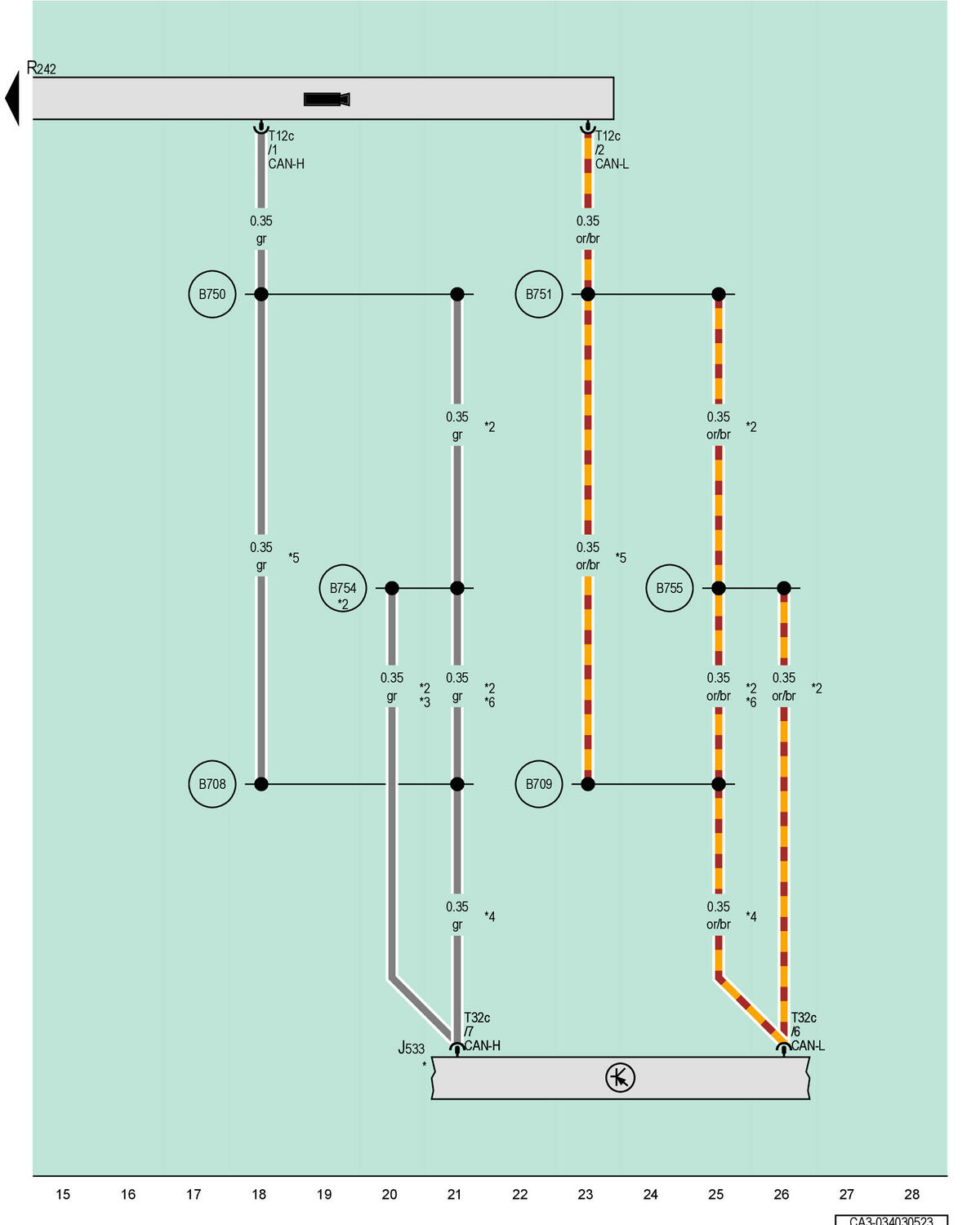

Data Bus On Board Diagnostic Interface, Driver Assistance Systems Front Camera

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

R242

Driver Assistance Systems Front Camera

T12c

12-Pin Connector, Brown

T32c

32-Pin Connector, Black

B708

Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B709

Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)

B750

CAN Bus High Display and Control Connection 1

B751

CAN Bus Low Display and Control Connection 1

B754

CAN Bus High Display and Control Connection 3

B755

CAN Bus Low Display and Control Connection 3

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

For Vehicles with Peripheral Camera

*3

For Vehicles Without Lane Change Assistance

*4

Depending on Equipment

*5

For Vehicles with Rearview Camera System

*6

For Vehicles with Lane Change Assistance
