Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing

-- Raise the front seat into its highest position and then move it all the way back.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

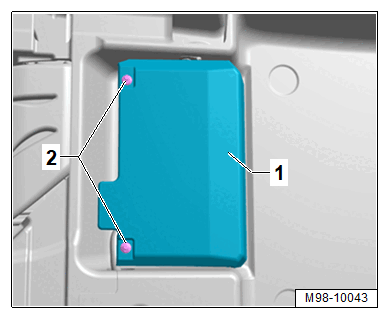

-- Remove the expanding rivets -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the cover -1- with the Peripheral Camera Control Module -J928-, straight in the direction of travel, while paying attention to the connected wires and turn.

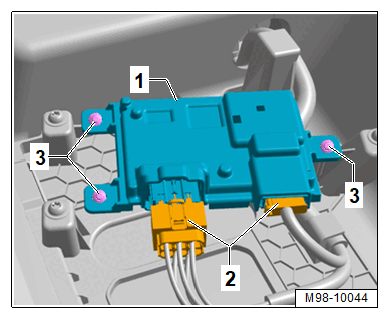

-- Release and disconnect the connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- At the same time remove the Peripheral Camera Control Module -J928- -1-.
