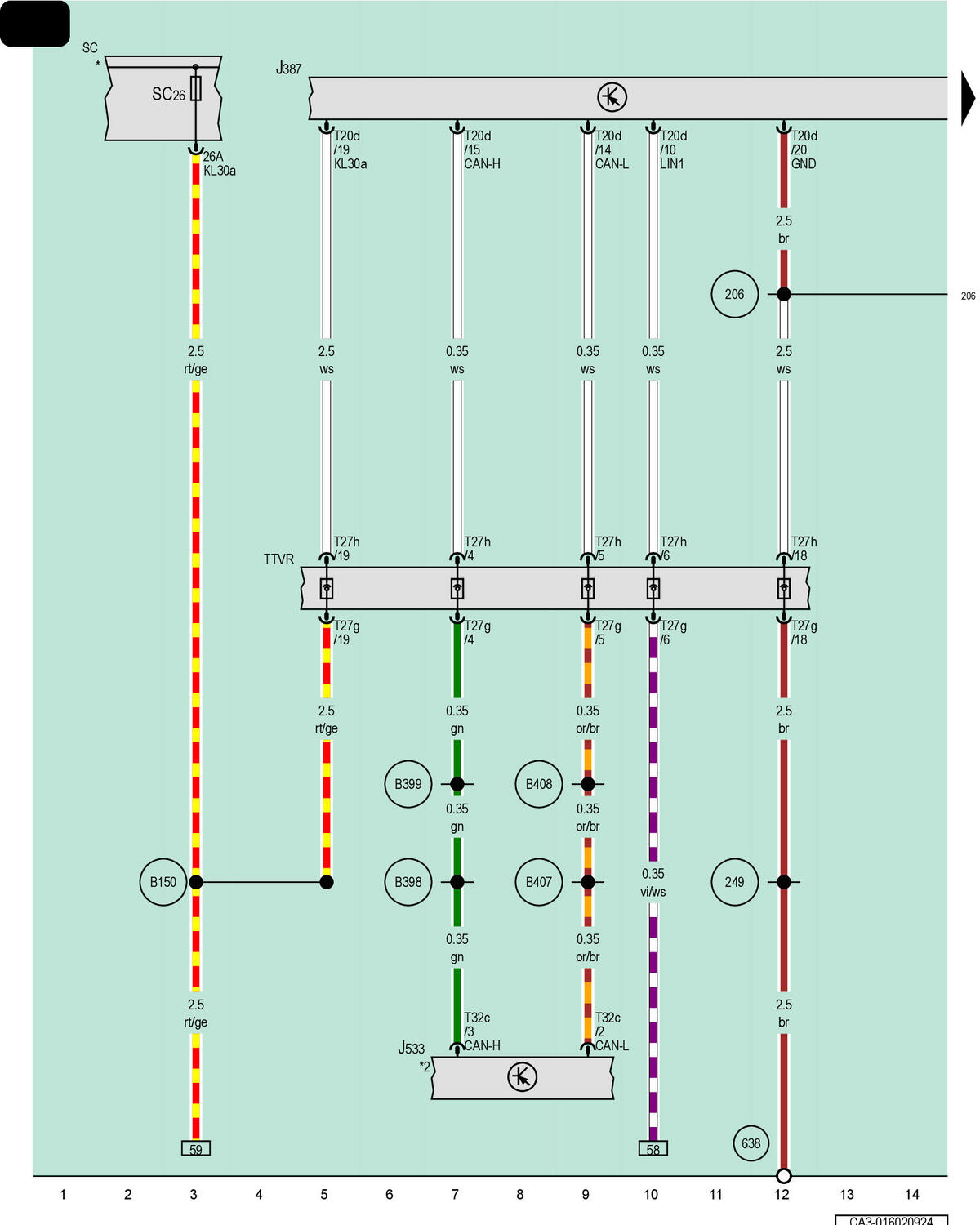

Front Passenger Door Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J387

Front Passenger Door Control Module

J533

Data Bus on Board Diagnostic Interface

SC

Fuse Panel C

SC26

Fuse 26 (On Fuse Panel C)

T20d

20-Pin Connector, White

T27g

27-Pin Connector, Black

T27h

27-Pin Connector, Black

T32c

32-Pin Connector, Black

TTVR

Right Front Door Coupling Point

206

Ground Connection (in Front Passenger Door Wiring Harness)

249

Ground Connection 2 (in Interior Wiring Harness)

638

Ground Connection on Right A-Pillar

B150

Positive Connection 2 (30a) (in Interior Wiring Harness)

B398

Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)

B399

Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)

B407

Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Data Bus Networking
