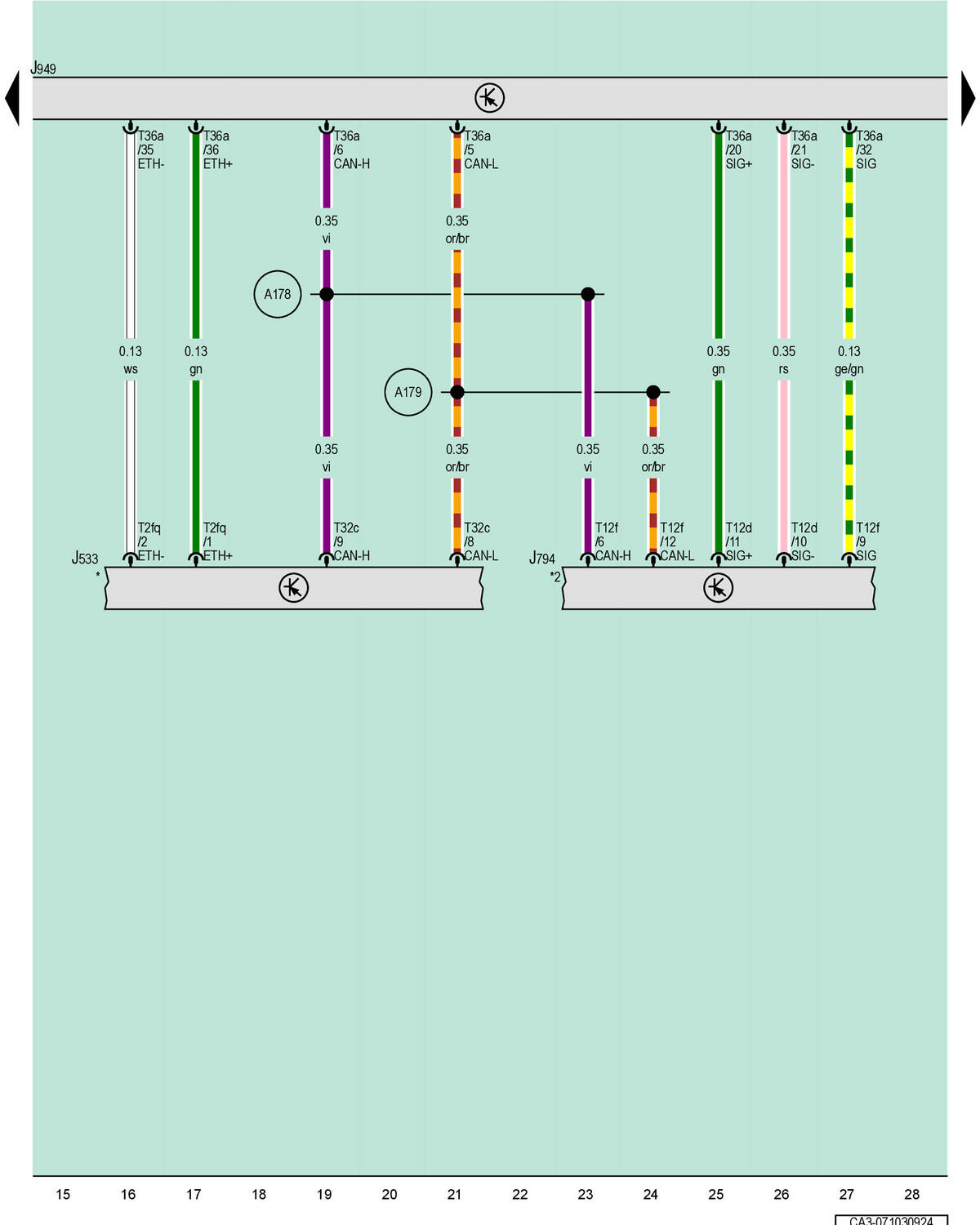

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T2fq

2-Pin Connector, White

T12d

12-Pin Connector, Blue

T12f

12-Pin Connector, Gray

T32c

32-Pin Connector, Black

T36a

36-Pin Connector, Black

A178

Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)

A179

Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

Refer to the Applicable Multimedia System Wiring Diagram
