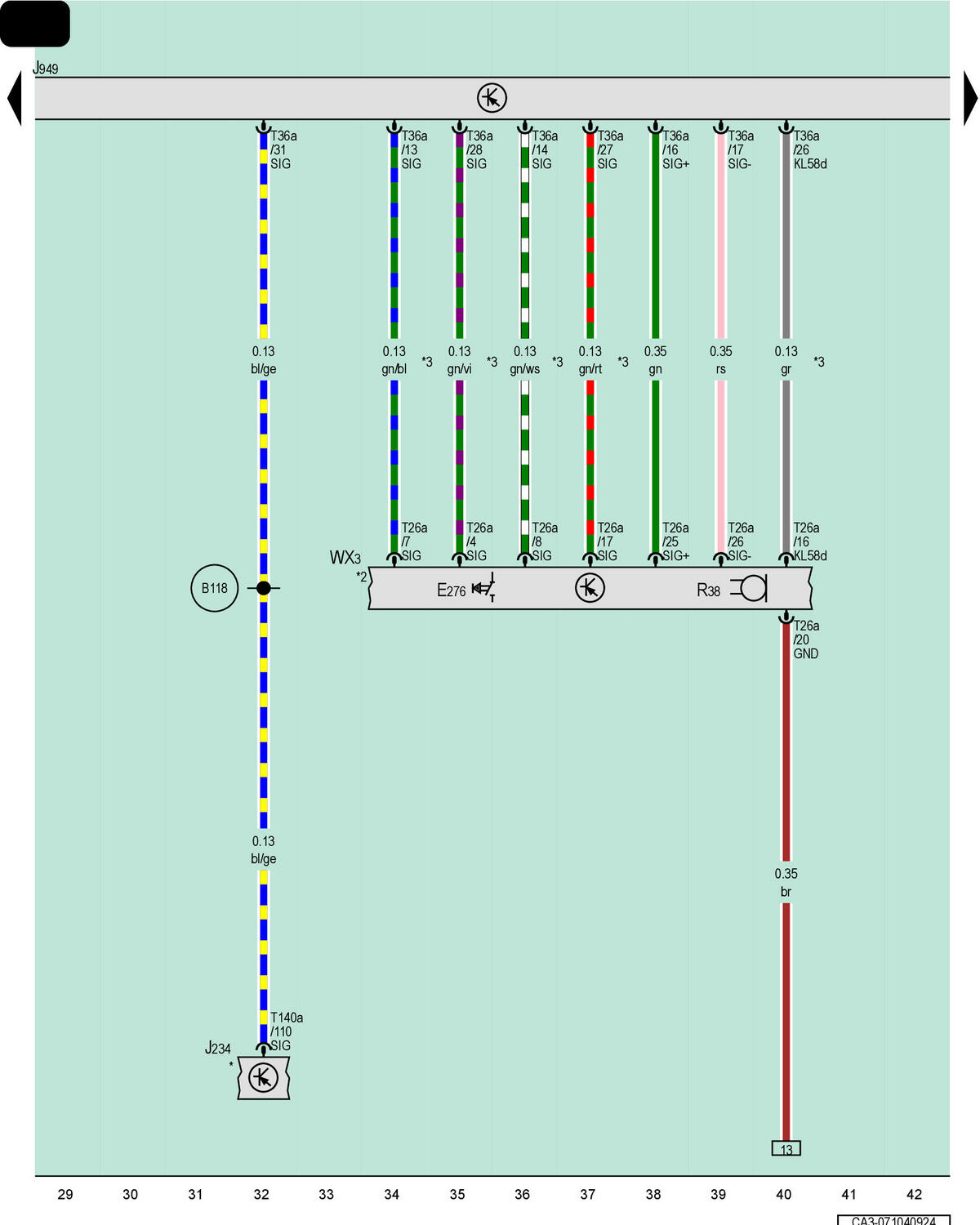

Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Front Roof Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E276

Emergency Call Button

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

R38

Telephone Microphone

T26a

26-Pin Connector, Black

T36a

36-Pin Connector, Black

T140a

140-Pin Connector, Yellow

WX3

Front Roof Module

B118

Driver Seat Adjustment Connection (in Interior Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Interior Lamps

*3

Depending on Equipment
