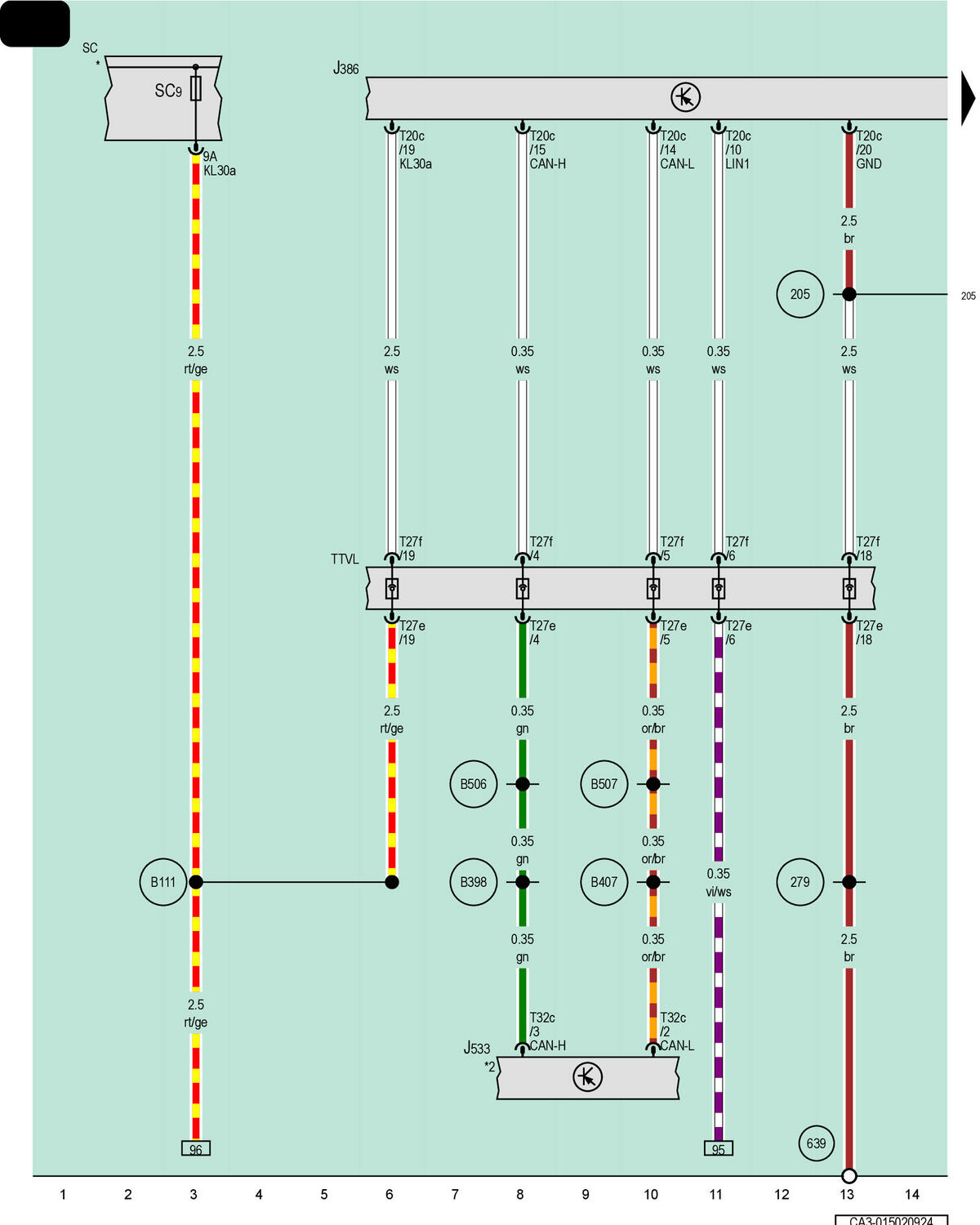

Driver Door Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J386

Driver Door Control Module

J533

Data Bus on Board Diagnostic Interface

SC

Fuse Panel C

SC9

Fuse 9 (On Fuse Panel C)

T20c

20-Pin Connector, White

T27e

27-Pin Connector, Black

T27f

27-Pin Connector, Black

T32c

32-Pin Connector, Black

TTVL

Left Front Door Coupling Point

205

Ground Connection (in Driver Door Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

B398

Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Data Bus Networking
