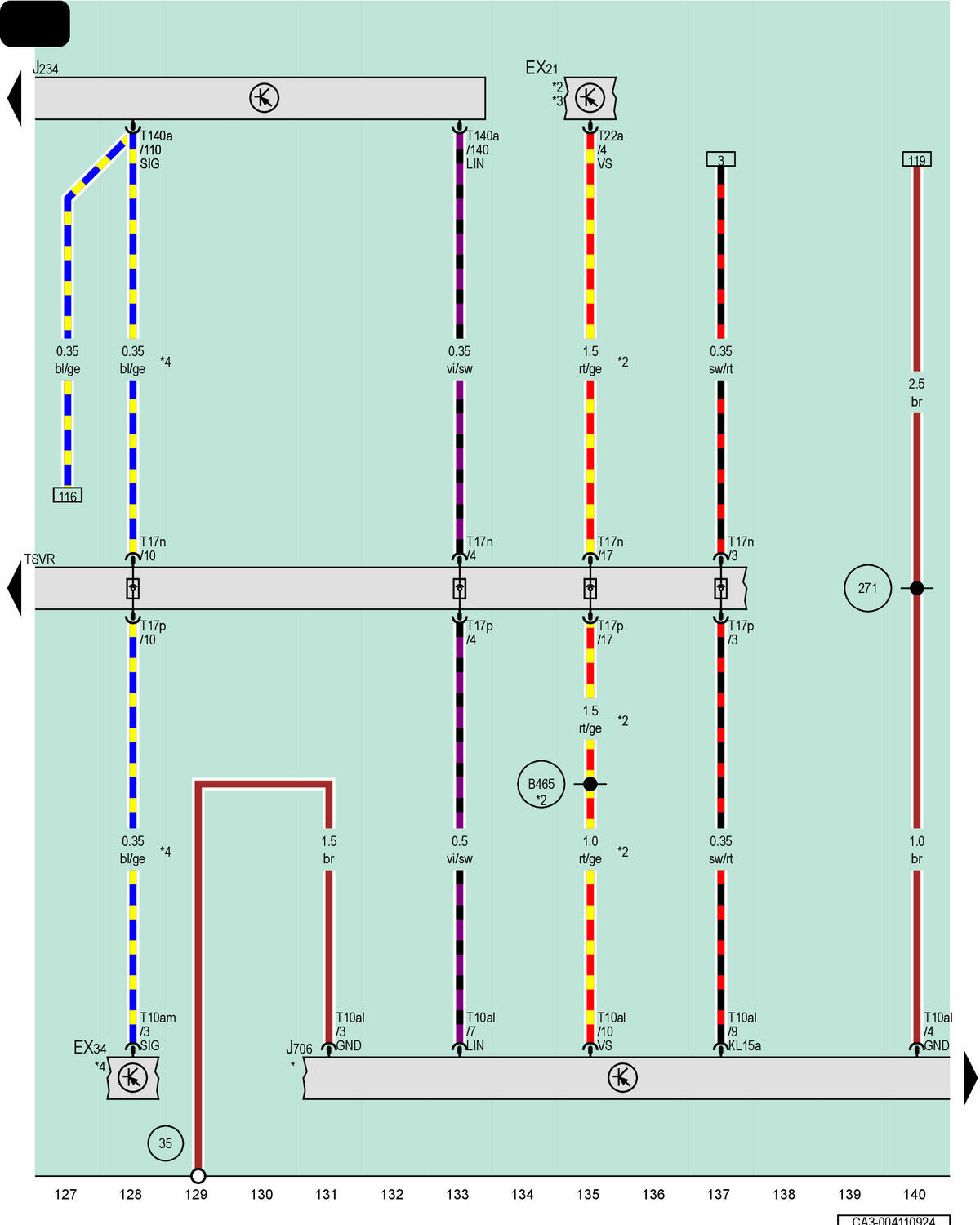

Heater And A/C Controls, Right Front Seat Adjustment Control Head, Airbag Control Module, Seat Occupant Detection System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX21

Heater and A/C Controls

EX34

Right Front Seat Adjustment Control Head

J234

Airbag Control Module

J706

Seat Occupant Detection System Control Module

T10al

10-Pin Connector, Black

T10am

10-Pin Connector, Black

T17n

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T22a

22-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

35

Ground Connection Under Front Passenger Seat

271

Ground Connection 3 (in Front Wiring Harness)

B465

Connection 1 (in Main Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram

*2

For Vehicles with Seat Heating

*3

Refer to Applicable A/C System Wiring Diagram

*4

Driver Memory Seat
