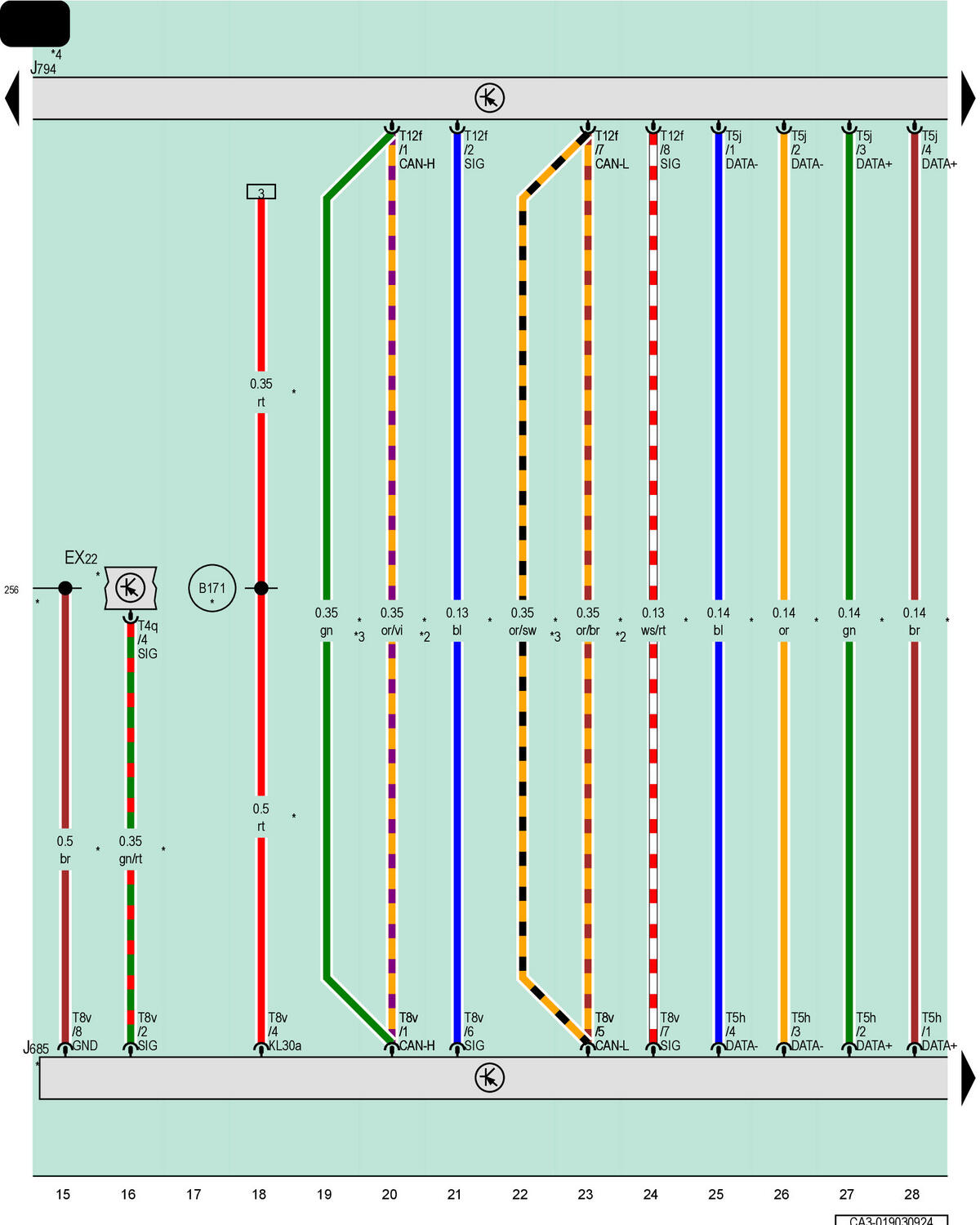

Center Instrument Panel Switch Module, Front Information Display Control Head, Information Electronics Control Module 1

GWWCA3-019030924Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX22

Center Instrument Panel Switch Module

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

T4q

4-Pin Connector, Red

T5h

5-Pin Connector, Blue

T5j

5-Pin Connector, Purple

T8v

8-Pin Connector, Black

T12f

12-Pin Connector, Gray

256

Ground Connection 2 (in Radio Wiring Harness)

B171

Positive Connection 3 (30) (in Interior Wiring Harness)

For Vehicles with Navigation System

*2

Through September 2024

*3

From September 2024

*4

Refer to Applicable Sound System Wiring Diagram

*5

Refer to Applicable Wiring Diagram for USB Connection for Data Transfer
