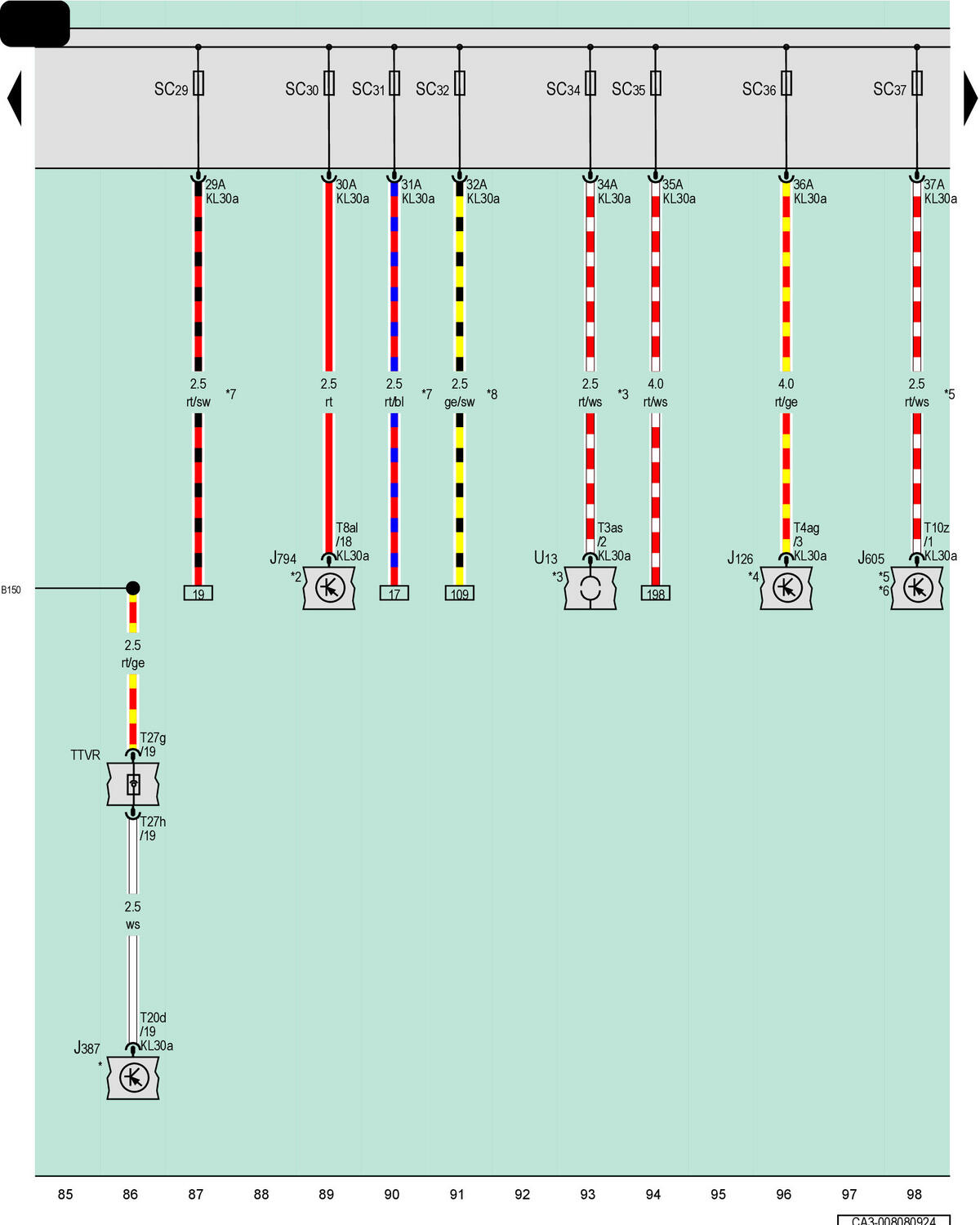

Fresh Air Blower Control Module, Front Passenger Door Control Module, Rear Lid Control Module, Information Electronics Control Module 1, Fuse Panel C, Converter With Socket, 12 V-230 V
J126
Fresh Air Blower Control Module
J387
Front Passenger Door Control Module
J605
Rear Lid Control Module
J794
Information Electronics Control Module 1
SC
Fuse Panel C
SC29
Fuse 29 (On Fuse Panel C)
SC30
Fuse 30 (On Fuse Panel C)
SC31
Fuse 31 (On Fuse Panel C)
SC32
Fuse 32 (On Fuse Panel C)
SC34
Fuse 34 (On Fuse Panel C)
SC35
Fuse 35 (On Fuse Panel C)
SC36
Fuse 36 (On Fuse Panel C)
SC37
Fuse 37 (On Fuse Panel C)
T3as
3-Pin Connector, Black
T4ag
4-Pin Connector, Black
T8al
8-Pin Connector, Black
T10z
10-Pin Connector, Black
T20d
20-Pin Connector, White
T27g
27-Pin Connector, Black
T27h
27-Pin Connector, Black
TTVR
Right Front Door Coupling Point
U13
Converter with Socket, 12 V-230 V
B150
Positive Connection 2 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
*2
Refer to the Applicable Multimedia System Wiring Diagram
*3
For Vehicles with Converter with Socket, 12V-230V / 12V-115V
*4
Refer to Applicable A/C System Wiring Diagram
*5
For Vehicles with Power Rear Lid Opening
*6
Refer to Applicable Power Rear Lid Wiring Diagram
*7
For Vehicles with Trailer Hitch
*8
For Vehicles with Heated Rear Seats
