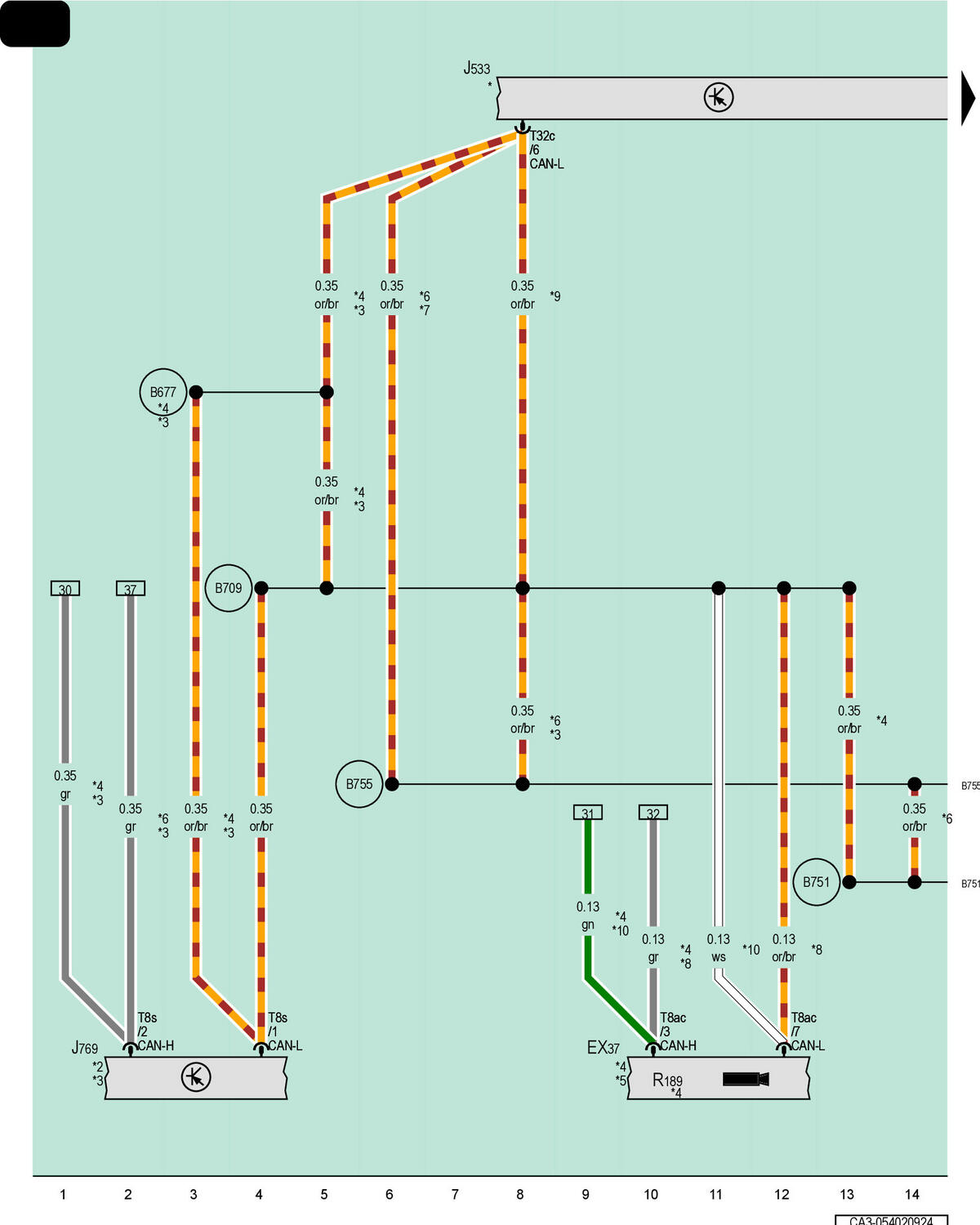

Rear Lid Handle, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX37

Rear Lid Handle

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

R189

Rearview Camera

T8ac

8-Pin Connector, Black

T8s

8-Pin Connector, Black

T32c

32-Pin Connector, Black

B677

Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Main Wiring Harness)

B709

Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)

B751

CAN Bus Low Display and Control Connection 1

B755

CAN Bus Low Display and Control Connection 3

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

Refer to Applicable Lane Change Assistance Wiring Diagram

*3

For Vehicles with Lane Change Assistance

*4

For Vehicles with Rearview Camera System

*5

Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)

*6

For Vehicles with Peripheral Camera

*7

For Vehicles Without Lane Change Assistance

*8

Running Change

*9

Depending on Equipment

*10

Omitted as a Running Change
