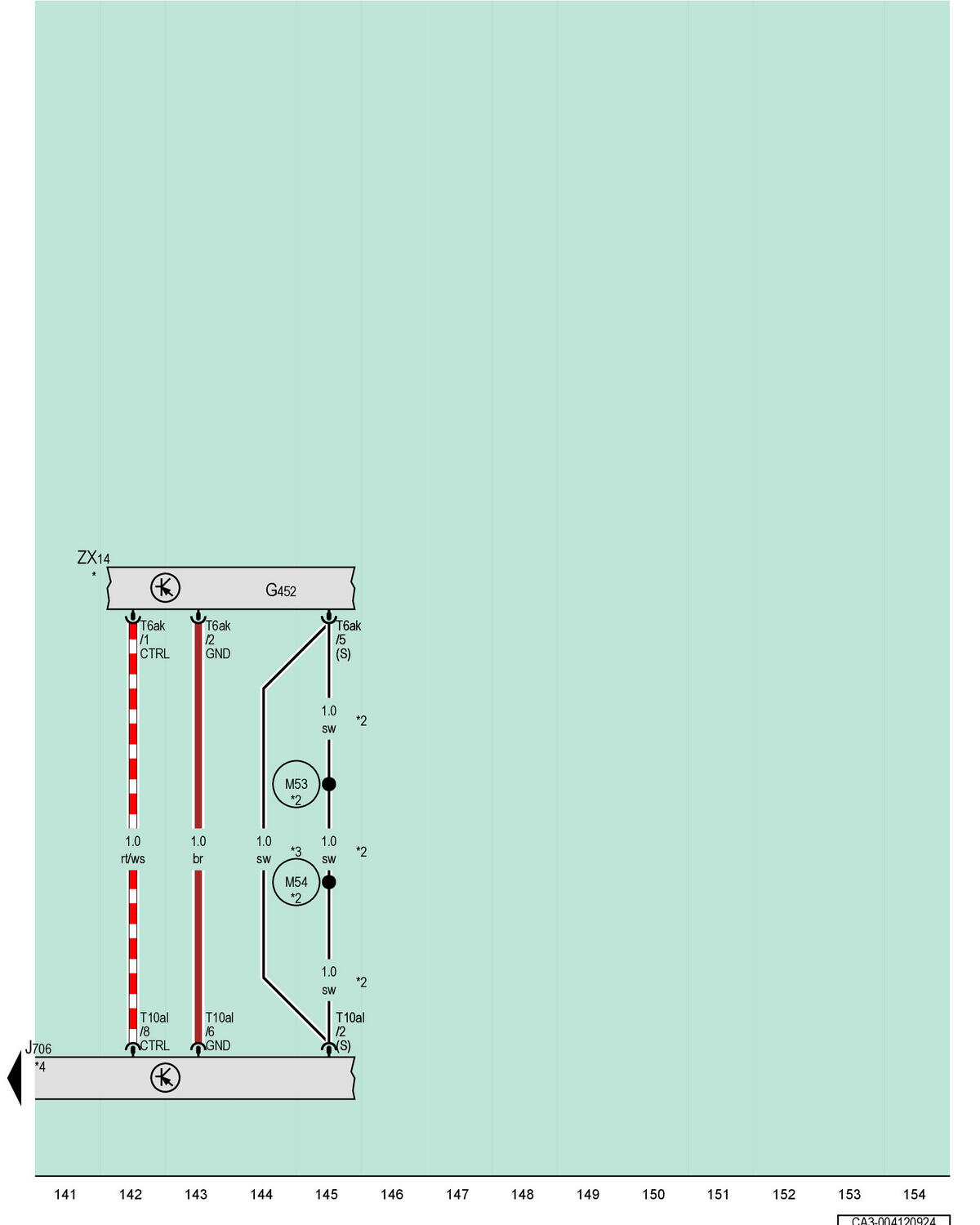

Seat Occupant Detection System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G452

Seat Occupant Detection System Pressure Sensor

J706

Seat Occupant Detection System Control Module

T6ak

6-Pin Connector, Black

T10al

10-Pin Connector, Black

ZX14

Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module

M53

Connection 3 (in Front Passenger Seat Wiring Harness)

M54

Connection 4 (in Front Passenger Seat Wiring Harness)

*

Pre-Wired Component

*2

From June 2024

*3

Through June 2024

*4

Refer to the Applicable Heated Seats Wiring Diagram
