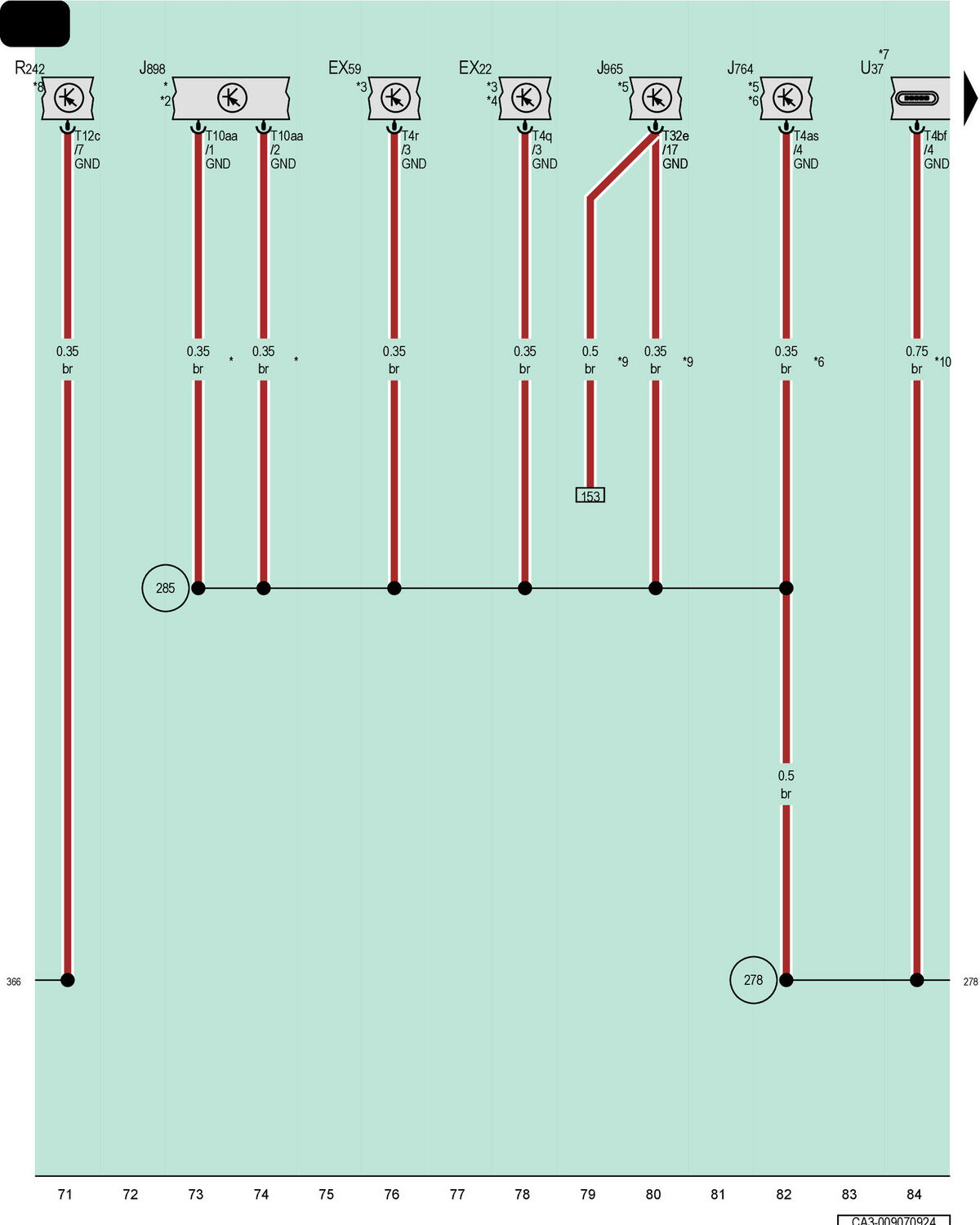

Center Instrument Panel Switch Module, Illumination Control Head, Electronic Steering Column Lock Control Module, Windshield Projection Head Up Display Control Module, Access/Start System Interface, Driver Assistance Systems Front Camera, USB Charging Socket 1
EX22
Center Instrument Panel Switch Module
EX59
Illumination Control Head
J764
Electronic Steering Column Lock Control Module
J898
Windshield Projection Head Up Display Control Module
J965
Access/Start System Interface
R242
Driver Assistance Systems Front Camera
T4as
4-Pin Connector, Black
T4bf
4-Pin Connector, Black
T4q
4-Pin Connector, Red
T4r
4-Pin Connector, Red
T10aa
10-Pin Connector, Black
T12c
12-Pin Connector, Brown
T32e
32-Pin Connector, Gray
U37
USB Charging Socket 1
278
Ground Connection 4 (in Interior Wiring Harness)
285
Ground Connection 7 (in Interior Wiring Harness)
366
Ground Connection 1 (in Main Wiring Harness)
*
For Vehicles with Windshield Projection
*2
Refer to Applicable Windshield Projection Wiring Diagram
*3
Refer to Applicable Light Switch Wiring Diagram
*4
Refer to Wiring Diagram for Parking Aid
*5
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*6
For Vehicles with Power Steering Column Adjustment
*7
Refer to Applicable Wiring Diagram for USB Connection for Data Transfer
*8
Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
*9
Depending on Equipment
*10
For Vehicles with USB Connection for Increased Charging Capacity
