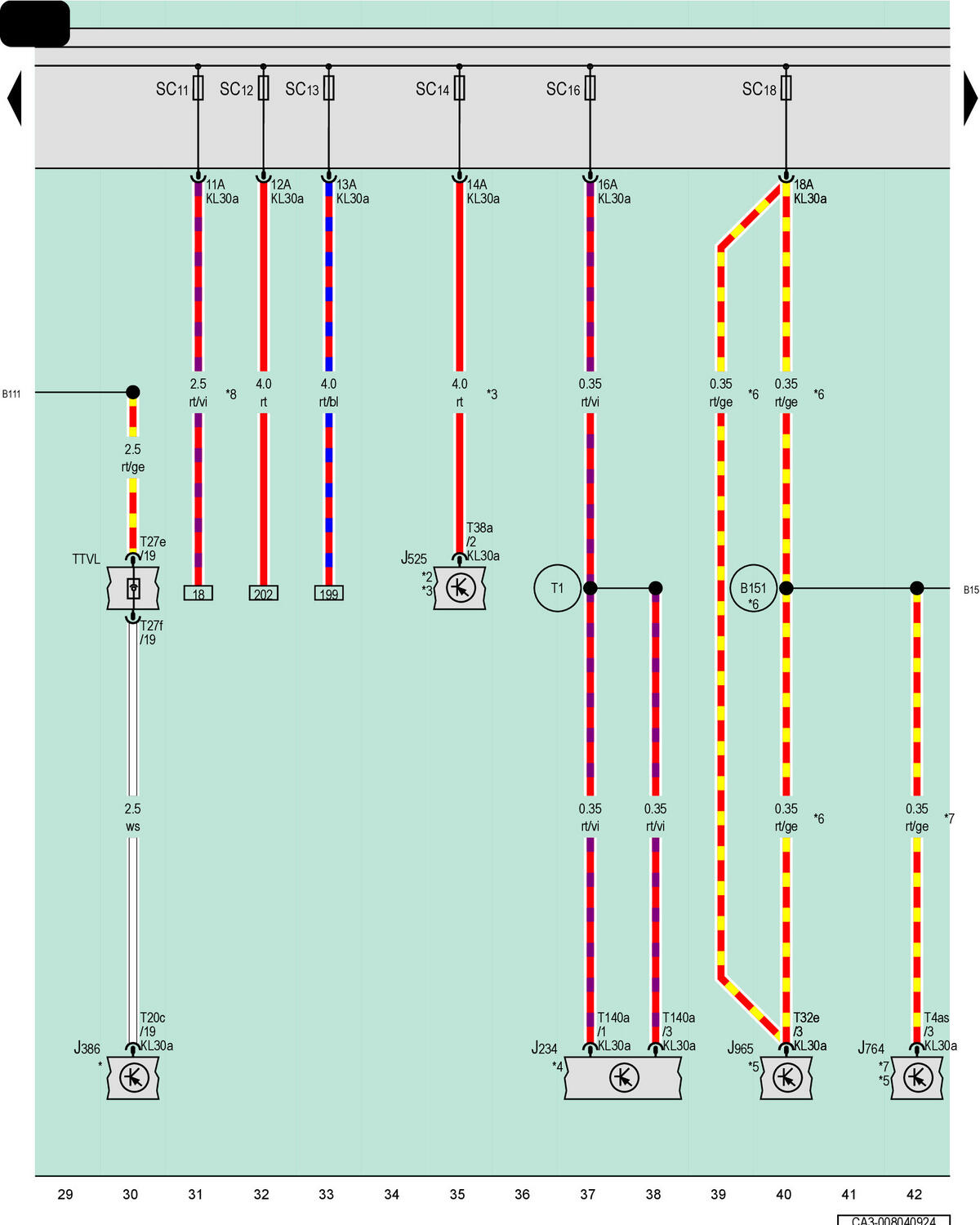

Airbag Control Module, Driver Door Control Module, Digital Sound System Control Module, Electronic Steering Column Lock Control Module, Access/Start System Interface, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J386

Driver Door Control Module

J525

Digital Sound System Control Module

J764

Electronic Steering Column Lock Control Module

J965

Access/Start System Interface

SC

Fuse Panel C

SC11

Fuse 11 (On Fuse Panel C)

SC12

Fuse 12 (On Fuse Panel C)

SC13

Fuse 13 (On Fuse Panel C)

SC14

Fuse 14 (On Fuse Panel C)

SC16

Fuse 16 (On Fuse Panel C)

SC18

Fuse 18 (On Fuse Panel C)

T4as

4-Pin Connector, Black

T20c

20-Pin Connector, White

T27e

27-Pin Connector, Black

T27f

27-Pin Connector, Black

T32e

32-Pin Connector, Gray

T38a

38-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TTVL

Left Front Door Coupling Point

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

T1

Positive Connection 1 (in Airbag Wiring Harness)

*

Refer to Applicable Driver Door Control Module Wiring Diagram

*2

Refer to Applicable Sound System Wiring Diagram

*3

For Vehicles with Sound System

*4

Refer to Applicable Airbag Wiring Diagram

*5

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*6

Depending on Equipment

*7

For Vehicles with Power Steering Column Adjustment

*8

For Vehicles with Trailer Hitch
