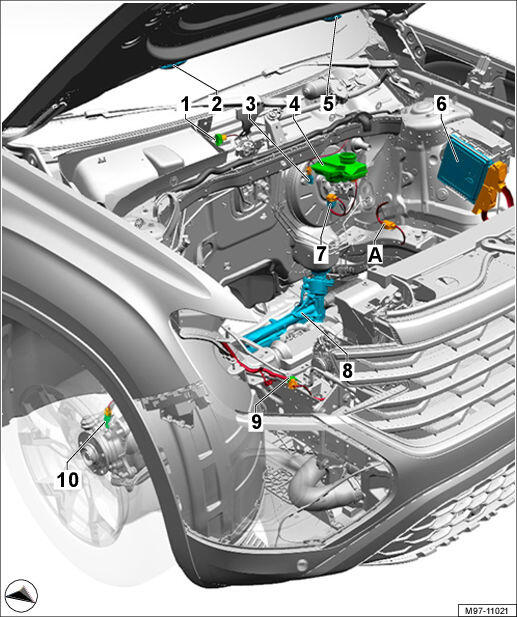

Front, View From Right
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- A -
6-Pin Connector -T6c-, black / 6-Pin Connector -T6d-, black
- 1 -
Air Quality Sensor -G238-
- 2 -
Right Washer Nozzle Heater -Z21-
- For vehicles with heated spray nozzles
- 3 -
Vacuum Sensor -G608-
- 4 -
Brake Fluid Level Warning Switch -F34-
- 5 -
Left Washer Nozzle Heater -Z20-
- For vehicles with heated spray nozzles
- 6 -
Engine/Motor Control Module -J623-
- 7 -
Brake Lamp Switch -F-
- 8 -
Power Steering Control Module -J500-
- 9 -
Refrigerant Circuit Pressure Sensor -G805-
- 10 -
Right Front ABS Wheel Speed Sensor -G45-
