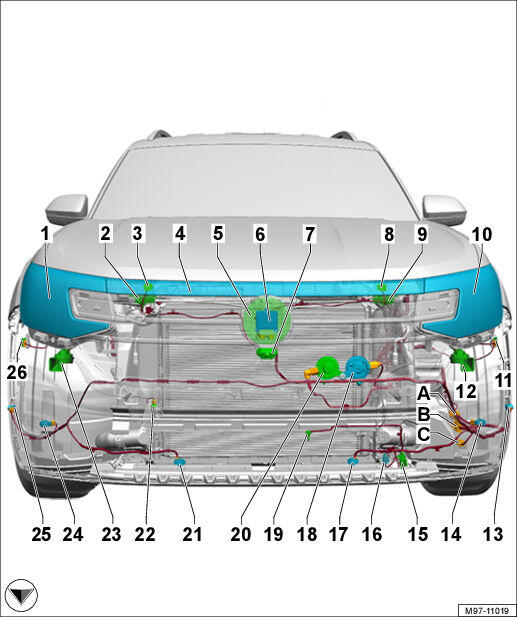

Front, View From Front
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- A -
2-Pin Connector -T2g-, white / 2-Pin Connector -T2j-, white
- For vehicles with peripheral camera
- A -
2-Pin Connector -T2h-, white / 2-Pin Connector -T2i-, white
- B -
14-Pin Connector -T14c-, black / 14-Pin Connector -T14k-, black
- C -
4-Pin Connector -T4a-, black / 4-Pin Connector -T4k-, black
- For vehicles with exterior contour illumination
- 1 -
Right Front Headlamp -MX2-
- 2 -
Passenger Side Front Airbag Crash Sensor -G284-
- 3 -
Engine Hood Contact Switch -F266-
- 4 -
Fiber Optic Cable for Contour Illumination in Center Front Radiator Grille -L423-
- For vehicles with exterior contour illumination
- 5 -
Front Emblem Contour Illumination Module -MX16-
- For vehicles with exterior contour illumination
- 6 -
Control Module for Adaptive Cruise Control -J428-
- 7 -
Front Peripheral Camera -R243-
- For vehicles with peripheral camera
- 8 -
Hood contact switch 2 -F329-
- 9 -
Driver front airbag crash sensor -G283-
- 10 -
Left Front Headlamp -MX1-
- 11 -
Burglary Protection Control Module -J1191-
- 12 -
Left Horn -H33-
- 13 -
Left Front Parallel Parking Assistance Sensor -G568-
- For vehicles with parallel parking assistance
- 14 -
Left Front Parking Aid Sensor -G255-
- For vehicles with park distance control (PDC)
- 15 -
Outside Air Temperature Sensor -G17-
- 16 -
Radiator Shutter Motor -V544-
- 17 -
Left Front Center Parking Aid Sensor -G254-
- For vehicles with park distance control (PDC)
- 18 -
Left Horn -H33-
- 19 -
Outside Air Temperature Sensor -G17-
- 20 -
Signal Horn and Dual Tone Horn -H1-
- 21 -
Right Front Center Parking Aid Sensor -G253-
- For vehicles with park distance control (PDC)
- 22 -
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- 23 -
Right Horn -H34-
- 24 -
Right Front Parking Aid Sensor -G252-
- For vehicles with park distance control (PDC)
- 25 -
Right Front Parallel Parking Assistance Sensor -G569-
- For vehicles with parallel parking assistance
- 26 -
Burglary Protection Control Module 2 -J1192-
